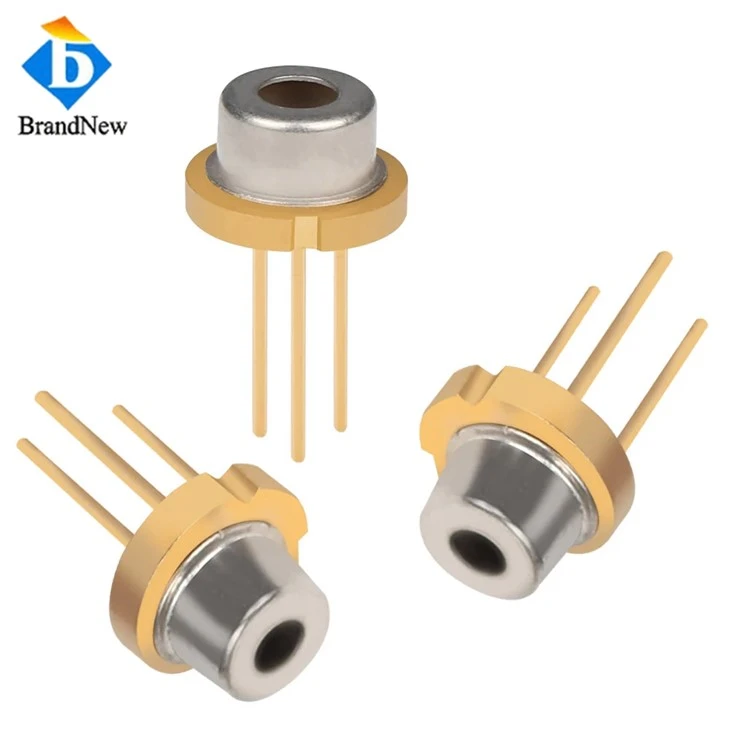

780nm 10mW TO Mount With PD Laser Diode
Features:
- 780nm, 10mW stable output with integrated monitor PD
- Low threshold current 14mA and low operating current 25mA
- Fast/slow beam Deg for convenient optical system collimation
Applications:
- Optical disk reading & optical storage equipment, as light source for disc read‑write modules.
- Optical measuring instruments, used for displacement, distance and position detection.
- Barcode scanning & industrial laser reading equipment for commercial scanning terminals.
- Optical sensing modules for signal transmission and photoelectric detection systems.
This TO‑can packaged 780nm 10mW laser diode comes with built‑in PD monitor, featuring low driving current, compact size and stable output. It is a cost‑effective light source widely adopted in optical storage, measurement, scanning and laboratory optical setups.
Data Sheet
Item No: TO780PD001
| Optical | Typical Value |
| Center Wavelength | 780~800nm |
| Output Power | 10mW |
| Beam Divergence Fast(Full Width at 1/e2) | 35Deg |
| Beam Divergence Slow(Full Width at 1/e2) | 12Deg |
| Electrical | |
| Operating Current Iop | 25mA |
| Threshold Current Ith | 14mA |
| Operating Voltage Vop | 2V |
| PD Current | 0.15mA |
| Thermal | |
| Test Temperature | -10~60℃ |
| Storage Temperature | -40~85℃ |
Drawing:
