Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 905nm to laser diodes. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

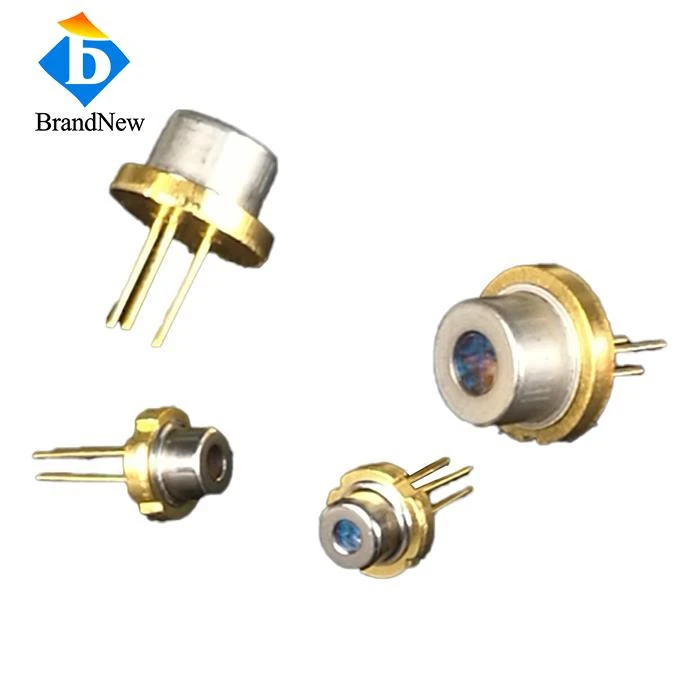

 150W 905nm TO-mounted Pulsed Laser Diodes Key Specification: Available with up to 150 W of peak power Excellent temperature stability Output Power:150w ( in pulse mode) Package: 5.6mm Narrow beam divergence. High laser power density. |
| Application: |
Laser rangefinder.
Automotive
Industrial optical modules
Laser radar.
Sensor Application
Specification:
| Optical | |
| Center Wavelength λ | 905nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 150W |
| Fast Axis Divergence | 30Degree |
| Slow Axis Divergence | 12Degree |
| Beam Size | 200x140um |
| Electrical | |
| Operating Current Iop | 30A |
| Threshold Current Ith | 0.75A |
| Pulse Wdith | 200ns |
| Reverse Voltage Vop | <6V |
| Duty Circle | 0.2% |
| Thermal | |
| Operating Temperature | 22-28℃ |
| Storage Temperature | -15-85℃ |
| Wavelength temperature coefficient | 0.28nm/ºC |
Pictures and Packing:
