Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 0.1w 808nm vcsel horizontal array chip. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.
01W 808nm VCSEL Horizontal Array Chip
Feature
-
Wavelength: 808 nm (near-infrared, NIR)
-
Output Power: 0.1 W (100 mW, CW)
-
Array Type: Horizontal linear array for extended emission area
-
VCSEL Technology:
-
Low threshold current
-
High wall-plug efficiency
-
Excellent wavelength stability with temperature
-
Compact and low-profile design
Application
-
Non-invasive diagnostics
-
Skin therapy and photobiomodulation
-
Experimental setups requiring compact NIR sources
-
Custom photonics solutions
Date sheet
Item Number: VC808HA01
Item Name: 808nm 0.1W VCSEL Horizontal Array Chip
| Electrical Optical Characteristics | |
| Threshold current | 60mA |
| Foorward Voltage |
2.2Vr |
| Differential Resistance | 2Ohms |
| Slop Efficiency | 1.05W/A |
| Chip Length | 300um |
| Output Power | 100mW |
| Power Conversion Efficiency | 38% |
| Wavelength | 808nm |

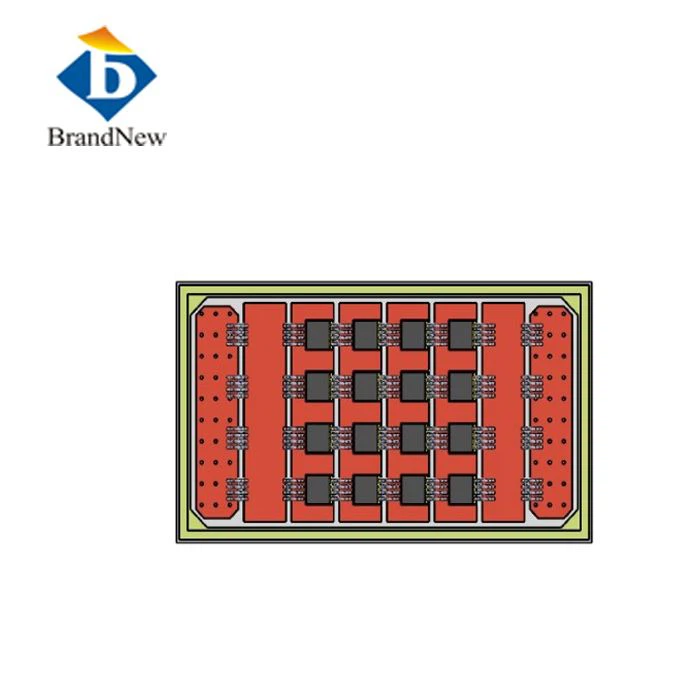

Drawing:
