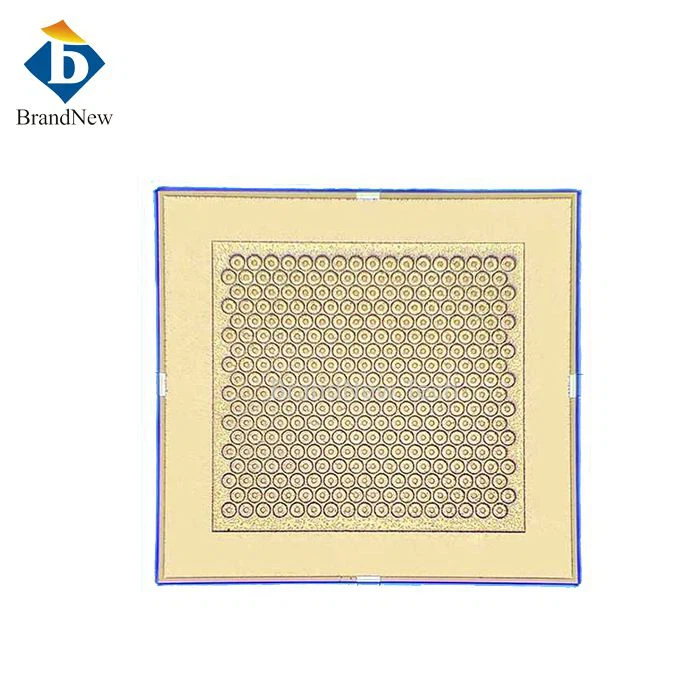

808nm 50W VCSEL Chip
Features：
-
High Power Density
-
High Efficiency
-
Compared to edge-emitting lasers (EEL), VCSELs provide more symmetrical, round beam spots that are easier to shape optically.
-
Large Emission Area and 2D Array Packaging: Suitable for power scaling in modular systems.
-
Compact Packaging: Ideal for integration into compact and mass-produced devices.
Application：
- Laser Pumping Source
- Medical and Aesthetic Equipment
- Spectroscopy and Imaging
- TOF/LiDAR/Sensors
The 808nm 50W VCSEL chip (Vertical-Cavity Surface-Emitting Laser) is a high-power, narrow-band infrared laser source with vertically emitted light. It is mainly used in systems such as laser pumping, material heating, and biomedical applications. Its vertical emission structure allows for easy integration into 2D arrays to enhance power density.
Data sheet
Item No.: VC808ME50
Item Name：808nm 50W Multi Emitter VCSEL Chip
| Optical | Typical Value |
| Center Wavelength λ | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 50W |
| Working Mode | CW |
| Full Divergence | 20Deg |
| Chip Size | 5*5mm |
| Electrical | |
| Threshold Current Lth | 15A |
| Operating Current Lop | 60A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~105℃ |
| Wavelength Temperature Coefficient | 0.07nm/℃ |
Looking for a reliable 808nm 50W VCSEL chip for high-performance applications? Our 808nm 50W VCSEL chip is designed for demanding industrial, medical, and sensing systems. With stable output, high efficiency, and excellent beam quality, this 808nm 50W VCSEL chip is ideal for laser pumping, LiDAR, and cosmetic devices. Whether you're building a laser system or integrating into a 2D array, our 808nm 50W VCSEL chip offers unmatched performance. We provide full technical support for your 808nm 50W VCSEL chip selection, ensuring easy integration and maximum results. Choose our 808nm 50W VCSEL chip to improve your product's reliability and energy efficiency. Contact us today to learn how the 808nm 50W VCSEL chip can power your next innovation. Get your quote now for our 808nm 50W VCSEL chip at competitive prices.
