Description
2W 808nm VCSEL SMD Diode QCW or CW Laser
Features:
- 808nm VCSEL 2W supports CW and QCW dual working modes
- Fixed 22° divergence angle with uniform circular spot
- SMD surface mount package, compact layout
Applications:
- 3D Sensing & Depth DetectionPerfect for facial recognition and consumer 3D depth sensing modules. The 22° fixed angle realizes matched optical path design.
- Industrial Machine Vision LightingUsed for industrial defect inspection, barcode scanning and automated visual positioning.
- Smart Household & Human InductionApplied in intelligent door access, body induction and low-light auxiliary lighting devices.
This 2W 808nm SMD VCSEL laser supports CW/QCW operation with 22° divergence angle, featuring high power, uniform beam and easy mounting. It is an ideal infrared light source for 3D sensing, machine vision, smart home and mini lidar systems.
Data Sheet
Item No: VC808SMD2
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 2W |
| Working Mode | QCW/CW |
| Pulse Width | 0.5ms |
| Duty Cycle | 1% |
| Divergence Angle | 22Degree |
| Electrical | |
| Operating Current Iop | <2.2A |
| Threshold Current Ith | 0.4A |
| Operating Voltage Vop | 2.1V |
| Slope Efficiency | 1W/A |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~+105℃ |

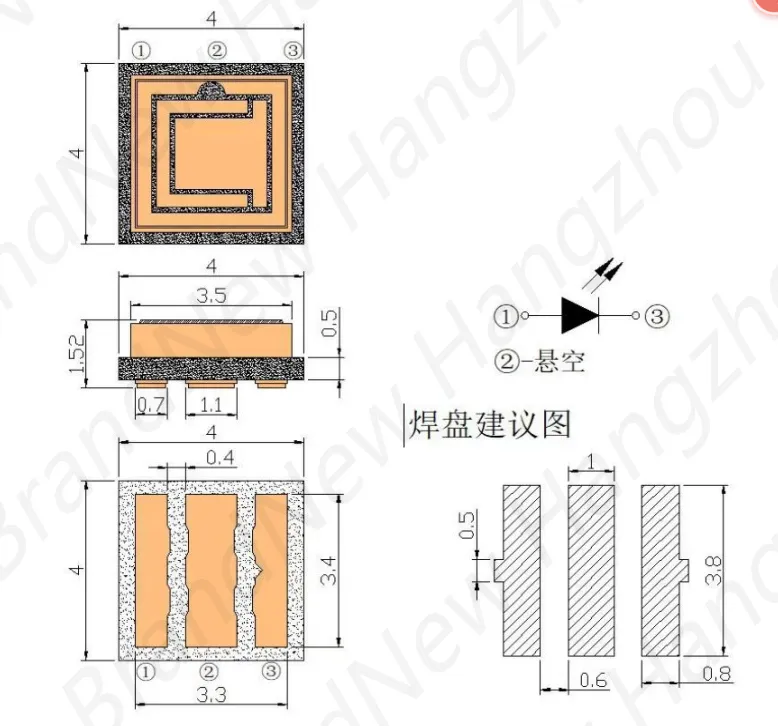

Drawing:
LIV Chart
