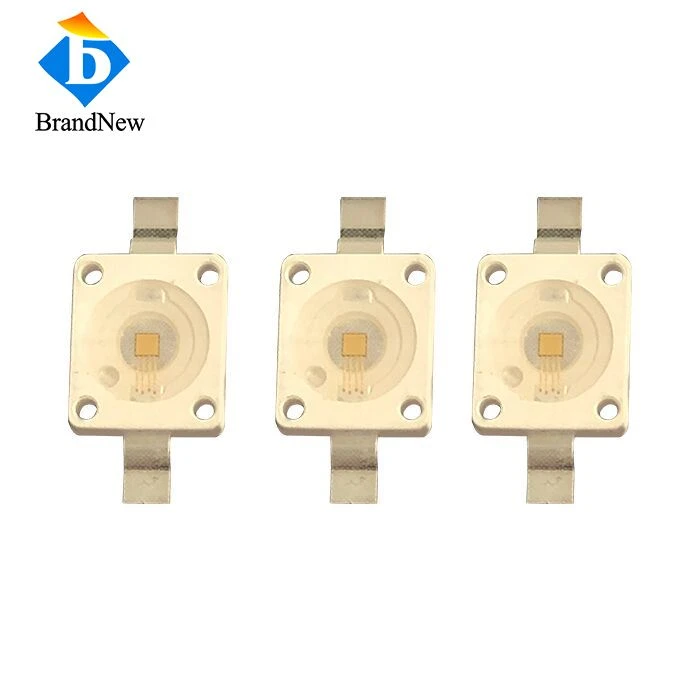

500mW 850nm VCSEL Diode in 7060 Package
Due to their reliability and high beam quality, 500mW 850nm VCSEL SMD 7060 are particularly popular for many applications. Another important feature is the comparatively low temperature dependence of the emitted wavelengths. Upon customer request, the presented 500mW 850nm VCSEL SMD 7060 are also available as high-performance arrays.
Features
• 7060 package
• Good thermal conduction
• Low threshold current
• Oxide isolation technology
Applications
• 3D sensor
• IR illumination
• Medical application
• Lidar
• Machine vision
Characteristics
| Parameter | Typ. |
| Center Wavelength | 850±10nm |
| Output Power | 500mW |
| Working Mode | QCW |
| Pulse Width | 0.5ms |
| Duty Cycle | 1% |
| Divergence Angle | 22Degree |
|
Emitter Quantity |
95 |
| Electrial | |
| Threshold Current Ith | 0.12A |
| Operating Current Iop | 0.7A |
| Operating Voltage Vop | 2.2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temp | -40~+105℃ |

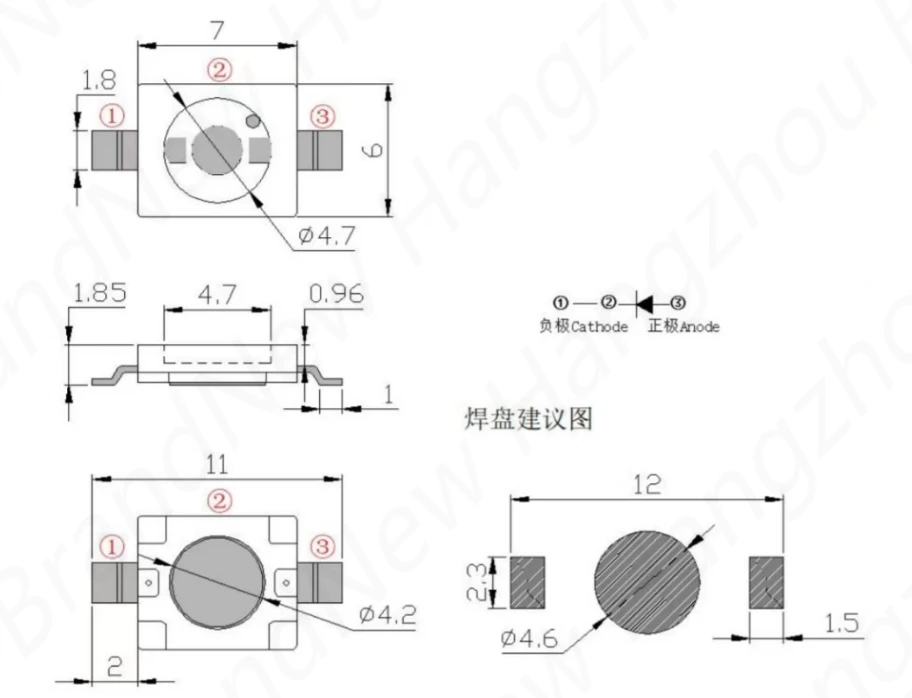

Mechanical Schematics
