Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 300w 808nm fiber diode laser for hair removal. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.
300W 808nm Fiber Diode Laser for Hair Removal
Features:
300watt, 808nm wavelength
(especially good for black hair on the yellow skin or the light skin)
Working mode: QCW, also Pulsed
(Pulse Width: 1-500ms; Frequency: 1-20Hz)
Special design for Fiber Coupled Diode Laser Hair Removal Machine
Data sheet:
Item No.: FC808DL300HR
| Optical | Typical Value |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 300W |
| Fiber | |
| Fiber Core | 400um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 2m |
| Electrical | |
| Operating Voltage Vop | Single phase,220±20V,AC,PE,50/60Hz |
| Control Mode | RS232,AD control |
| Pulse Width | 1-500ms |
| Pulse Frequency | 1-20Hz |
| Water Cooling | |
| Water Flow Rate | 4.5L/min |
| Hydraulic Pressure | 0.3MPa |
| Water Tube Diamter | dia.12mm |
| Cooling Water | Purified Water/Distilled Water |
| Size/Weight | |
| Weight | 5Kg |
| Size of Diode Laser/Driver | 200*90*80mm |
| Size of Power Supply | 238*124*100mm |

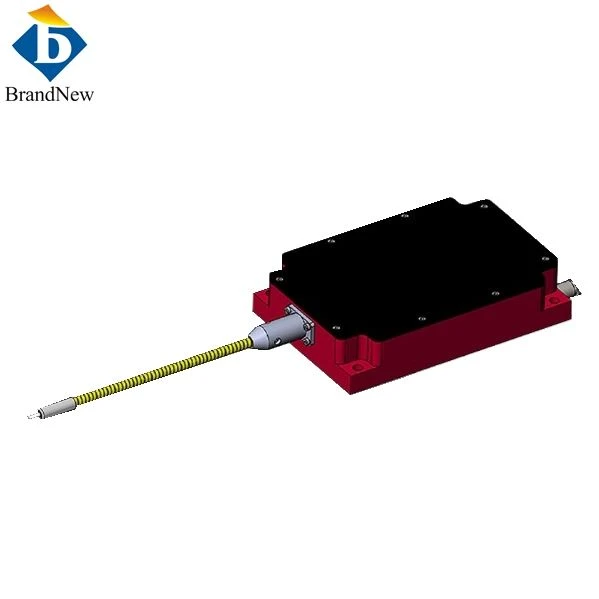

Drawing
