Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 720w 12bars vertical stack adss diode laser machine for hair removal. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

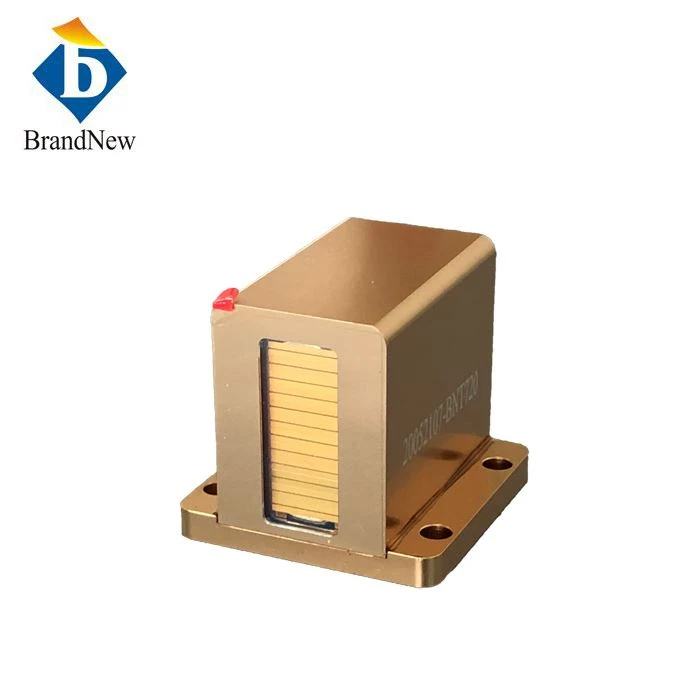

808nm 720W 12Bars Vertical Stack Diode Laser Machine for Hair Removal
Features:
- 720W output power, 808nm central wavelength
- QCW working mode, 12 laser bars
- Compact design, easy to integrate
- 18 months quality warranty
Applications:
- Hair Removal
- Material processing
- Laser surface hardening
- Tattoo Removal
Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality and sells at competitive price. Its quality and reliability enable customers to differentiate the performance of their hair removal systems for aesthetic market as well as serving the medical application market.
Data Sheet
Item No: WC808VS720
Item Name: 720W 12Bars Water Cooled Vertical Stack Diode Laser
| Optical | |
| Central Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Working Mode | QCW |
| Output Power | 720W |
| Number of Bars | 12 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence (FWHM) | 12Deg |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | 50~55A |
| Threshold Current Ith | 15A |
| Operating Voltage Vop | 24V |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
| Others | |
| Coolant | Distilled Water |
| Flow Rate/Bar | 4~6L/min |
| Max Inlet Pressure | 350~500kPa |
| Water Temperature(No Condensation) | 23~27℃(No Condensation) |
| Filtered Water Particles | <20μm |

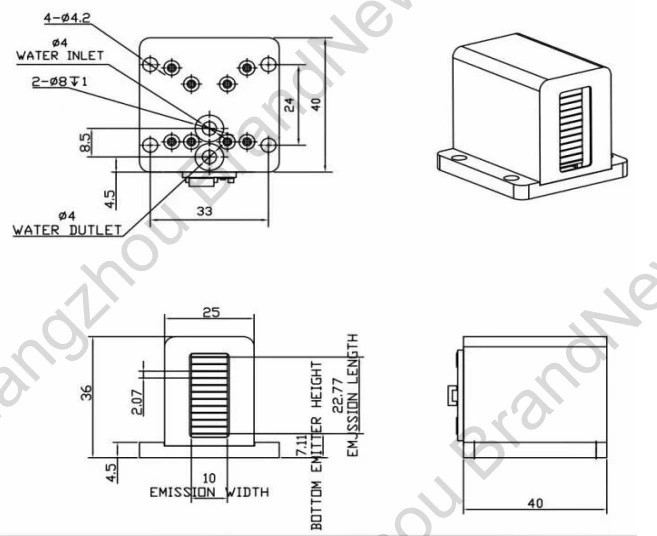

Drawing:
720W 12Bars Vertical Stack ADSS Diode Laser Machine for Hair Removal , three different wavelengt
Ausu Soldering ensure high reliability. Default 10 Bars, and the number of the bars can be customized.
Standard size, special design for most Chinese Hair Removal Machine repair and replacement.
These diode arrays operate with a maximum pulse width of 400 ms and feature a compact and rugged package with AuSn hard solder for good thermal control and high reliability.
BrandNewTech also offers hybrid diode arrays in the 760nm-1100nm wavelength range to meet additional customer needs. These laser diode arrays have been widely used in pumped solid state lasers, depilators and lasers. For any request, please contact us at jy@brandnew-china.com.
