Description

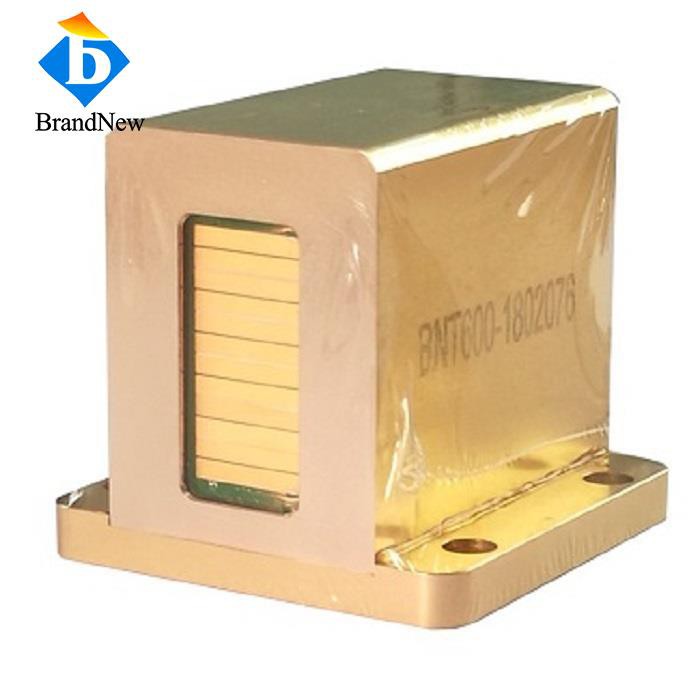

Prividing standard 500W/600W diode laser stack and other 2-40 customized bars stack
Typical wavelengths: 755nm 808nm 1064nm
Diode Laser Stack Bar widely used in hair removal, skin tightening, skin rejuvenation, whitening
Lifetime of lasers is up to 10000hours
Brandnew can also customize various dimension upon our client's requirements.
Data sheet
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 50W/60W |
| Number of Bars | 10 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~50A/60A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~19V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Drawing
