Description
New Design 600W 808nm Vertical Stack Diode Laser With 6 Bars
Feature:
- 100W output power per bar with 6 bars
- Advanced Ausn soldering technology
- High Stability and long lifetime
- 18 months warranty time
Application:
- Hair removal handle pieces repairing and replacement
- IR Illumination
- Medical Treatment
- Industry Use
We have new design products. And our laser bar is imported from Germany, heat-sink is from Japan, with mature mounting technology, so that we can guarantee good cooling and high power.
Data Sheet
Item No: WC808VS600
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Working Mode | QCW |
| Output Power Per Bar | 100W |
| Number of Bars | 6 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence (FWHM) | 12Deg |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 20A |
| Operating Voltage Vop | 11V |
| Thermal | |
| Operating Temperature | 23~27℃ |
| Storage Temperature | 0-60℃ |
| Others | |
| Coolant | Filtered Water |
| Flow Rate/Bar | 3.5~4.5L/min |
| Max Inlet Pressure | 400~600kPa |
| Water Temperature(No Condensation) | 23~27℃(No Condensation) |
| Filtered Water Particles | <20μm |

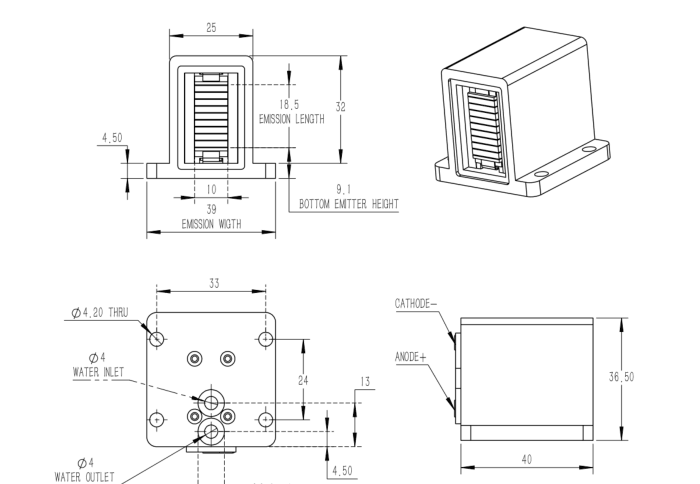

Drawing:
- They are designed for discontinuous wave (QCW) operation and utilize active cooling to ensure high efficiency and long life.
- The laser stacks have 4 submounts, each capable of producing up to 100 W of power when collimated.
- At full power, the slow-axis divergence is less than 4 degrees, and the expected lifetime at constant current exceeds 10,000 hours.
- The laser stacks require deionized water for cooling, and they are suitable for a variety of applications, including pumped solid-state and fiber lasers, materials processing, and medical procedures.
