Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 200w 940nm single bar diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

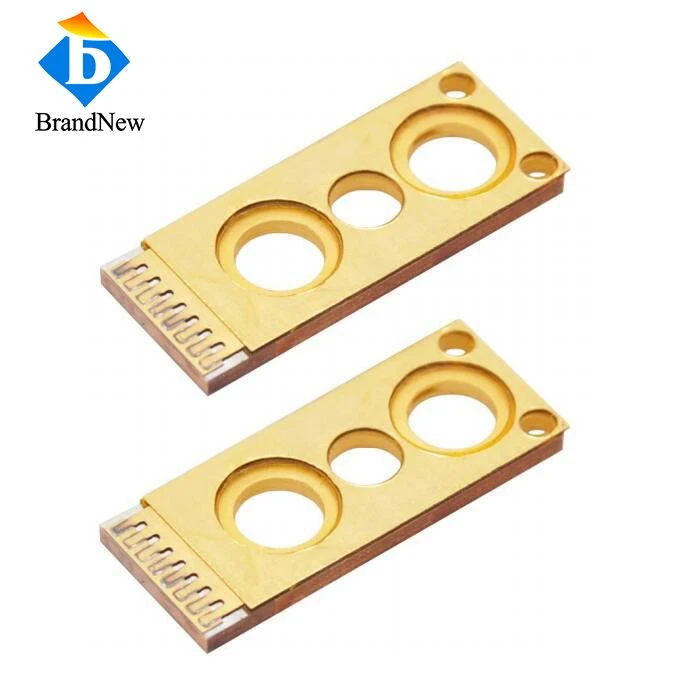

200W 940nm Single Bar Diode Laser
Key features:
Deionized water cooled
Widely used for assemble hair removal laser diode stack.
Also it can be used for industrial pumping and laser coupler.
Data sheet
Item No.: WC940SB200
| Optical | |
| Center Wavelength λ | 940nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 200W |
| Spectral Width FWHM | 6nm |
| Fast Axis Divergence(FWHM) | 30Deg |
| Slow Axis Divergence (FWHM) | 10Deg |
| Working Mode | CW |
| Electrical | |
| Operating Current Iop | 200A |
| Threshold Current Ith | 25A |
| Operating Voltage Vop | 1.8V |
| Thermal | |
| Operating Temperature | 15~35℃ |
| Storage Temperature | 0-55℃ |
| Wavelength Temperature Coefficient | ~0.3nm/℃ |
| Coolant | Deionized water |
| Flow Rate | 0.4-0.7L/min |
| Water Pressure | 380KPa |

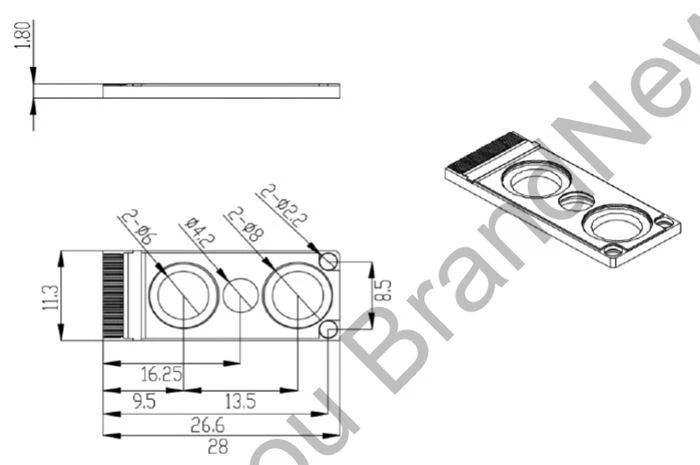

Package drawing
