Description

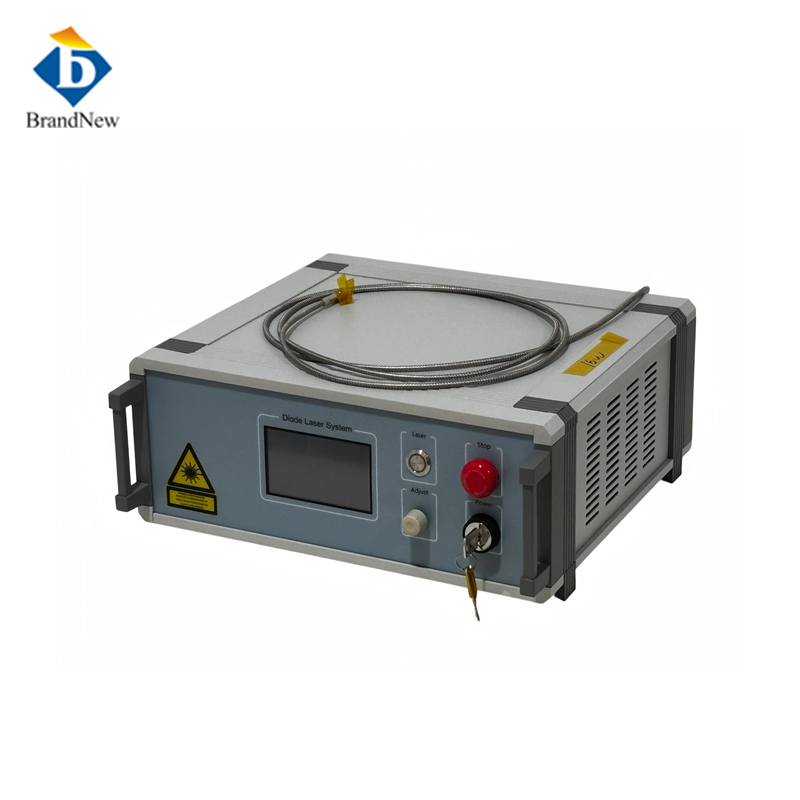

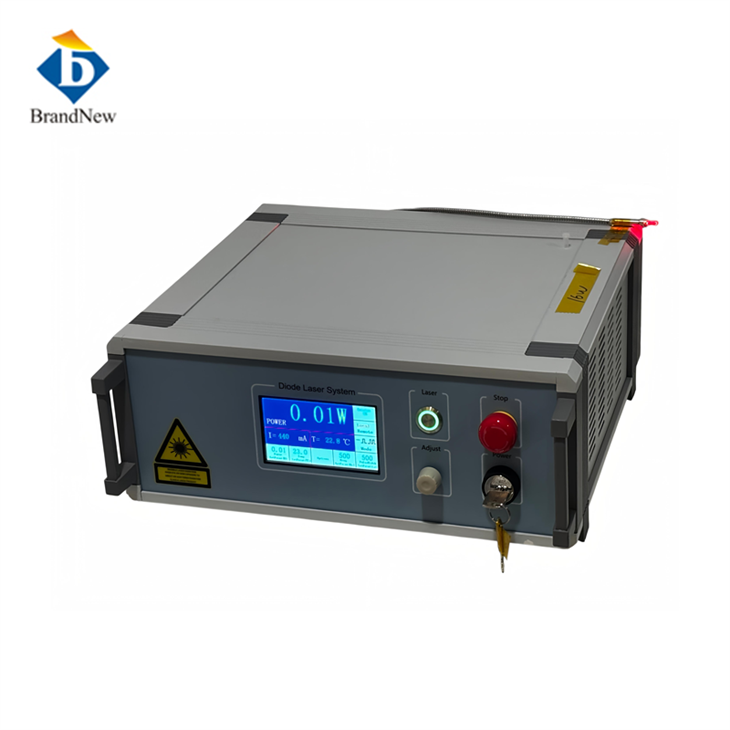

640nm 200W Fiber Coupled All In One Laser System
Features:
- 200W high-power CW output
- 640nm red wavelength
- all-in-one integrated design for plug-and-play use
Applications:
- Laser Ranging: Applied in high-precision long-distance laser rangefinders for industrial surveying, aerospace detection, and outdoor mapping.
- Laser Indication & Positioning: Widely used in industrial positioning systems, robotic guidance, and large-scale equipment alignment.
- Biomedical & Physiotherapy：Integrated into professional medical and physiotherapy equipment for pain relief, tissue regeneration, and rehabilitation treatment.
- Material Heat Treatment: Used in industrial material thermal processing, such as surface annealing, tempering, and local heating of metal and non-metallic materials.
Data Sheet
Item No: FC640YT200
| Optical | |
| Center Wavelength | 640nm |
| Wavelength Tolerance | ±15nm |
| Output Power | 200W |
| Working Mode | CW/QCW |
| FWHM/Spectral Width | 25nm |
| Fiber | |
| Fiber Core | 600um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | >1m |
| Jacket Diameter | 5mm |
| Fiber Connector | HP-SMA905 |
| Electrical | |
| Power Supply | AC220V/50~60Hz |
| Control | RS232/External Control |
| Power Consumption | 1000W |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Cooling | Water |
| Water Flow Rate | 6L/min |
| Cooling Capacity | 2000W |

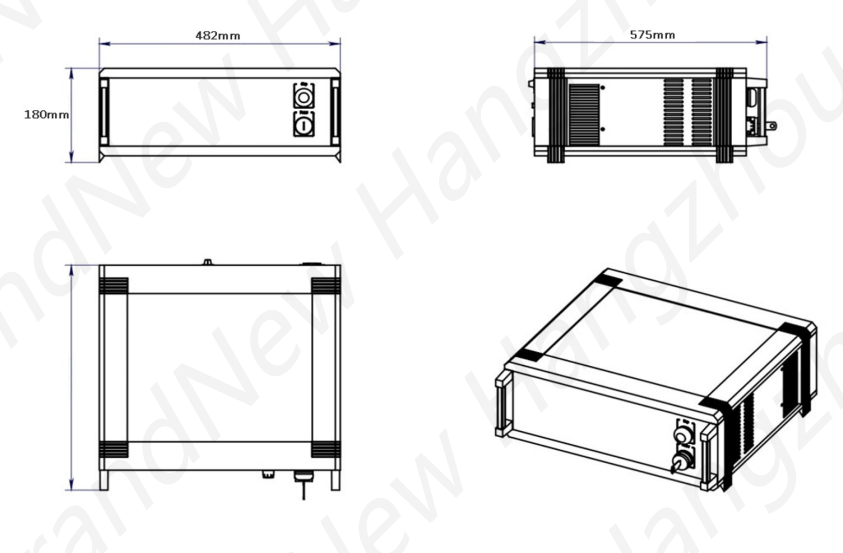

Drawing:
