Description

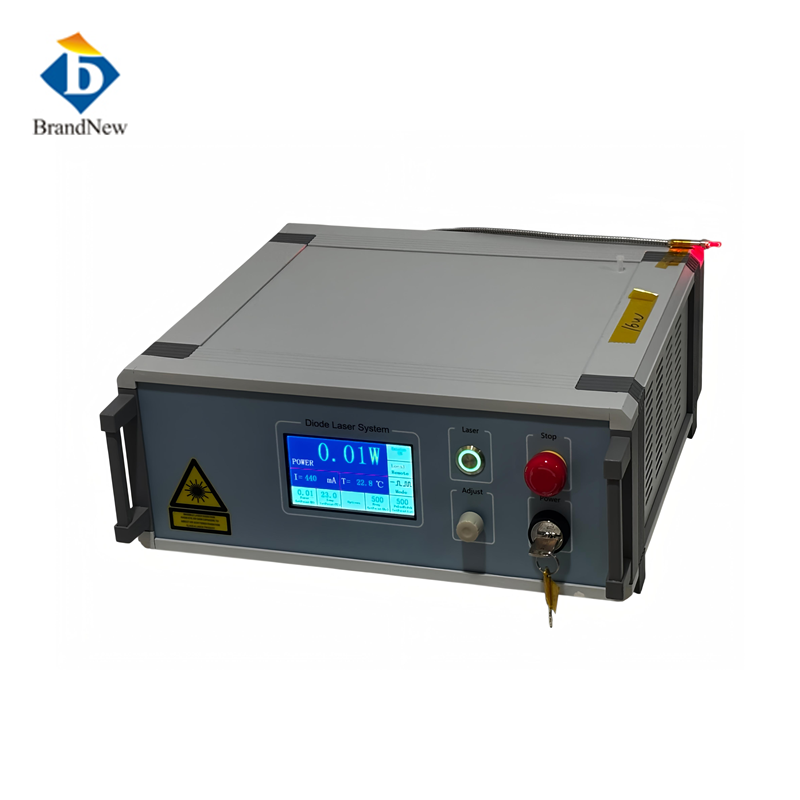

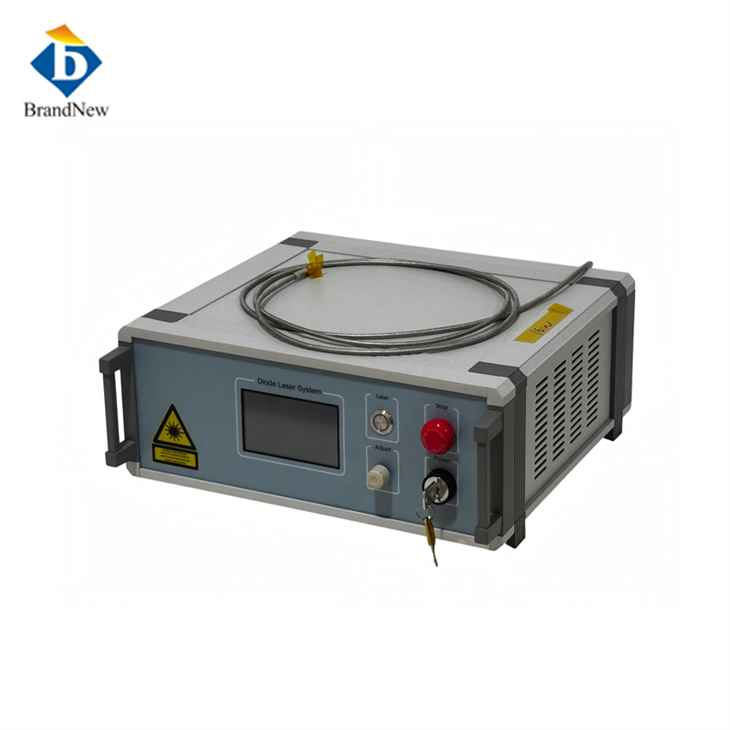

1470nm 270W System of Fiber for Laser Weeding Diode laser
Features:
- 270W high-power output at 1470nm
- Stable fiber-coupled output with uniform energy distribution
- All-in-one integrated system with reliable heat dissipation
Applications:
- Agricultural Laser Weeding & Precision Weeding: Widely used in intelligent laser weeding machines for farmland, orchards, and greenhouse planting.
- Orchard & Horticultural Weed Management: Applied in fruit tree plantations, nurseries, and landscaping maintenance.
- Field & Lawn Weed Control: Used in large-scale farmland, lawns, and public green spaces for automatic weed removal.
- Intelligent Agricultural Machinery Integration: Designed for integration into AI-driven agricultural robots, unmanned weeding vehicles, and precision agricultural equipment.
Data Sheet
Item No: FC1470YT270
| Optical | |
| Center Wavelength | 1470nm |
| Wavelength Tolerance | ±15nm |
| Output Power | 270W |
| Working Mode | CW/QCW |
| FWHM/Spectral Width | 25nm |
| Fiber | |
| Fiber Core | 400um |
| Fiber Numerical Aperture | 0.14NA |
| Fiber Length | >1m |
| Jacket Diameter | 5mm |
| Fiber Connector | HP-SMA905 |
| Electrical | |
| Power Supply | AC220V/50~60Hz |
| Control | RS232/External Control |
| Power Consumption | 1500W |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Cooling | Water |
| Water Flow Rate | 9L/min |
| Cooling Capacity | 3000W |
Drawing:
