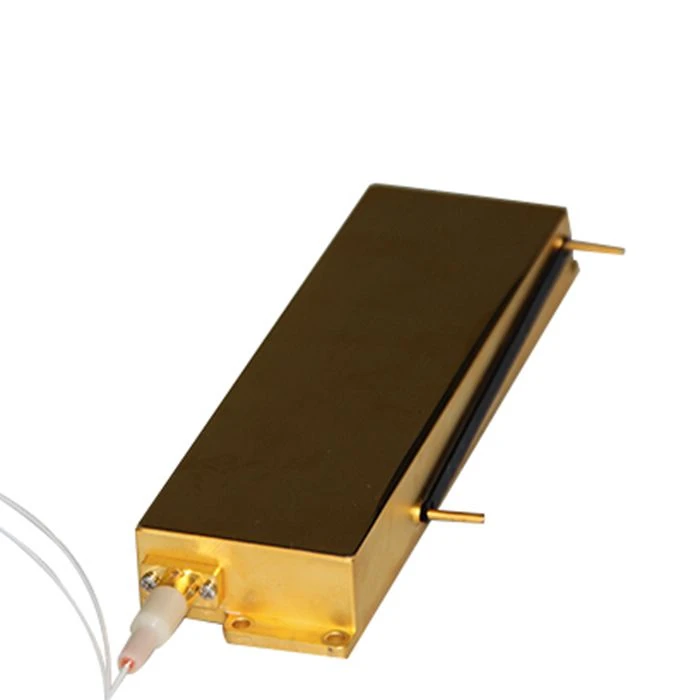

808nm 150W Fiber Coupled Diode Laser
Overview
Brief Introduction:
These high power laser diodes feature a high slope efficiency, high reliability.
Diode laser chip from Germany or America and submount from Japan
High coupling efficiency
High Output power for 808nm
Stable Performance
Long lifetime
Applications:
Suitable for various opto-electronic applications
Illumination and scientific research
Laser engraving, laser marking
Data sheet:
Item Number: FC808DL150
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±5nm |
| Power | 150W |
| Spectral Width FWHM | 4.5nm |
| Slope Efficiency | 12.5W/A |
| Fiber | |
| Fiber Core | 200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Connector | Bare |
| Electrical | |
| Operating Current Iop | 11-12A |
| Threshold Current Ith | 1A |
| Operating Voltage Vop | 34.5V |
| Power Conversion Efficiency | 45% |
| Thermal | |
| Operating Temp. | 15~35℃ |
| Storage Temp. | -20-55℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Drawing:
Operating the product outside of its maximum ratings may cause device failure or a safety hazard. Power supplies used with the device must be employed such that the maximum peak optical power cannot be exceeded. A proper heatsink for the Device on thermal radiator is required, sufficient heat dissipation and thermal conductance to the heatsink must be ensured.
