Description

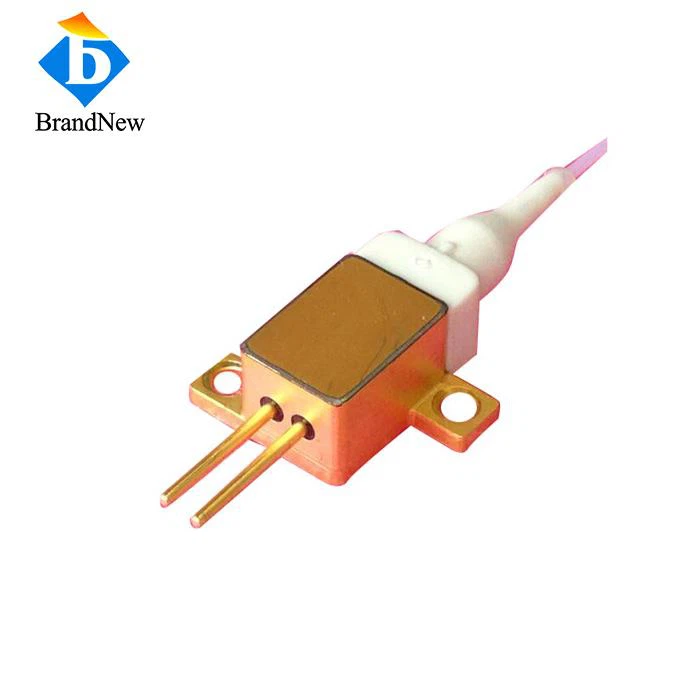

8W 808nm Fiber Coupling Laser Diodes
Features:
- 808nm 8W CW output
- 105um 0.22NA fiber, SMA905 connector
- High coupling efficiency, stable beam
Applications:
- Precision Sensing: Ideal for biomedical detection, spectral analysis and laser ranging, leveraging low-power stability
- Medical Devices: Suitable for low-power therapeutic equipment and diagnostic prototypes
- OEM Laser Modules: Core component for compact laser modules, fitting industrial-grade fiber configurations
- Laboratory R&D: Reliable for laser-material interaction tests, fiber coupling performance verification
This 8W 808nm fiber coupling laser diode features 105um fiber core, 0.22NA and SMA905 connector, delivering stable continuous-wave output with high coupling efficiency. Its optimized fiber design ensures uniform beam delivery, enabling flexible integration and customized system matching, making it a premium choice for laser module manufacturers, medical device developers and industrial R&D projects. Durable and high-performance, it meets strict standards for diverse low-power laser applications.
Data Sheet
Item No: FC808DL8
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 8W |
| Fiber | |
| Fiber Core | 105um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 9.5A |
| Threshold Current Ith | 1.5A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |

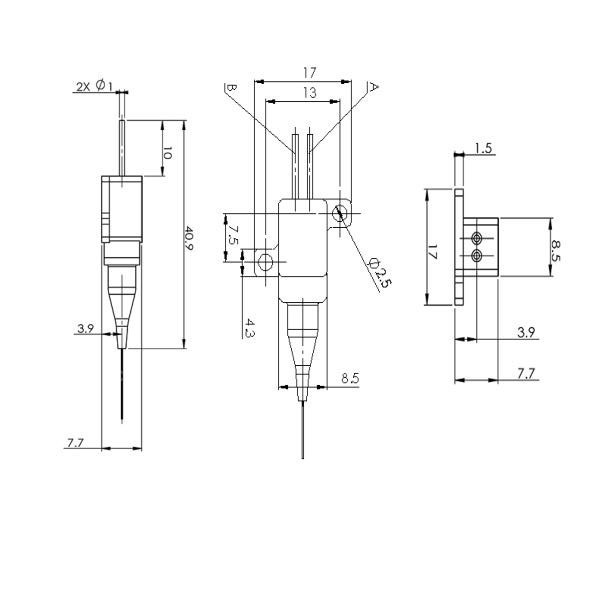

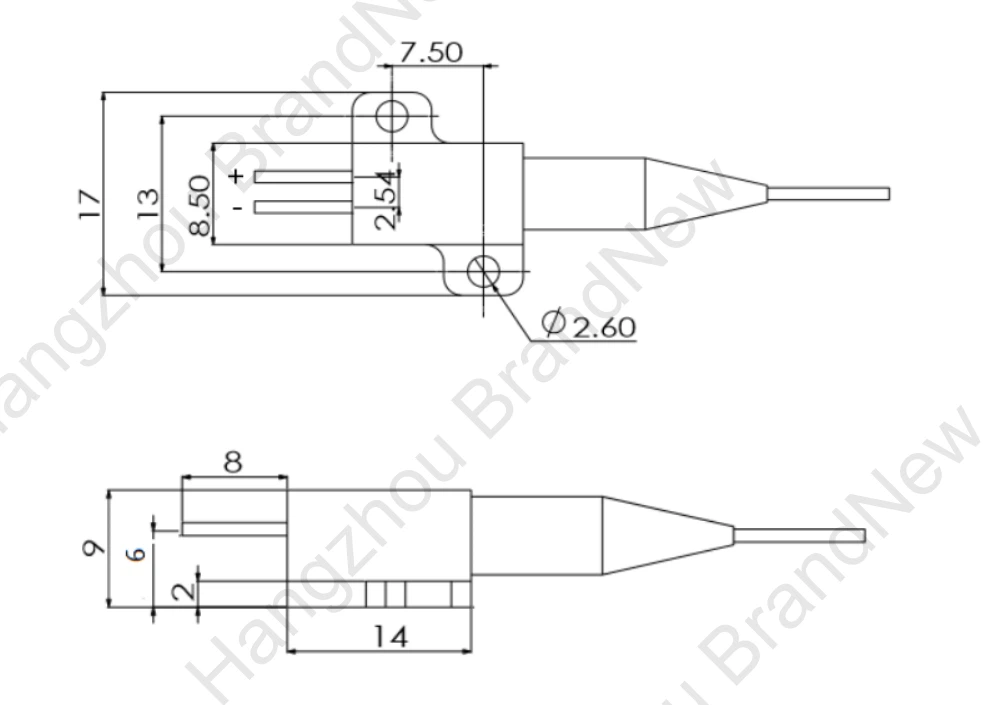

Drawing:
