750W 940nm Fiber Coupled Diode Laser
Product Description
The fiber coupled diode laser is capable of delivering an impressive output power of up to 750W through a 200um fiber. This laser module utilizes a state-of-the-art high power proprietary chip that has been meticulously optimized to ensure exceptional reliability, particularly at high peak power levels.
What sets the multimode fiber coupled laser diode module apart is its remarkable combination of high brightness, compact size, and simplified thermal management. These features make it a highly sought-after solution, offering unparalleled convenience and efficiency.
Overview
Key Features
Highest power at 940nm: 750 Watts CW Output
High Reliability Multi-Single Emitter Design
200 μm Core Diameter Fiber Pigtail
Back Reflection Isolation 1040 nm - 1200 nm
Application
Pumping source
Scientific research
Industry
Specification:
Item Number: FC940DL750
| Optical | |
| Center Wavelength | 940nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 750W |
| Fiber | |
| Fiber Core Diameter | 200um |
| Fiber Length/Fiber Jacket Diameter | 1m |
| Fiber Connector | Bare |
| Electrical | |
| Operating Current | 30A |
| Operating Voltage | 65V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |

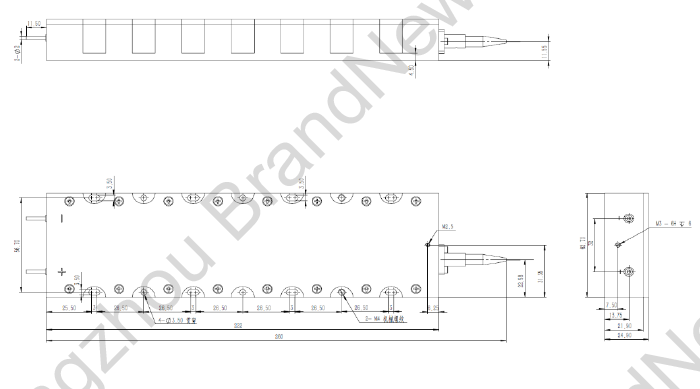

Dimension:
