Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 60w 940nm fiber coupled diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

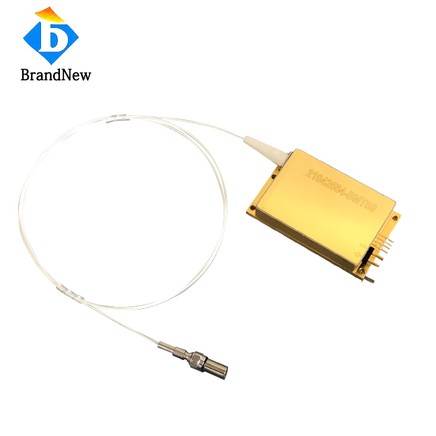

60W 940nm Fiber Coupled Diode Laser
Features:
- Based on single fire spot laser module
- High output power 60W
- High stability
- 6-Pin sealed package, SMA905 connector
- RoHS compliance
Applications:
- Medical
- Lighting
- pump source
- Material processing
- Fiber-coupled (also called fiber-integrated or fiber-pigtailed) diode lasers have several advantages: The light exiting the fiber has a circular and smooth (homogenized) intensity profile and a symmetric beam quality, which is in many cases very convenient.
- BrandNew delivers 940+/-10NM-60.0W-25C-105-0.22NA diode lasers employing professional coupling technology, that enjoy multiple advantages, e.g., compact design, stable output power, high power, high efficiency and convenient packaging. These laser diode modules can provide solutions for fiber laser applications and direct suppliers.
Specification
Item Number: FC940DZ60
| Optical | |
| Center Wavelength | 940nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 60W |
| Fiber | |
| Fiber Core | 105um |
| Fiber N.A. | 0.22NA |
| Fiber Length | 1m |
| Electrical | |
| Operating Current Lop | 12A |
| Threshold Current Lth | 0.6A |
| Operating Voltage Vop | 12V |
| Thermal | |
| Test Temp. | 25℃ |
| Storage Temp. | -30~70℃ |
Drawing:
