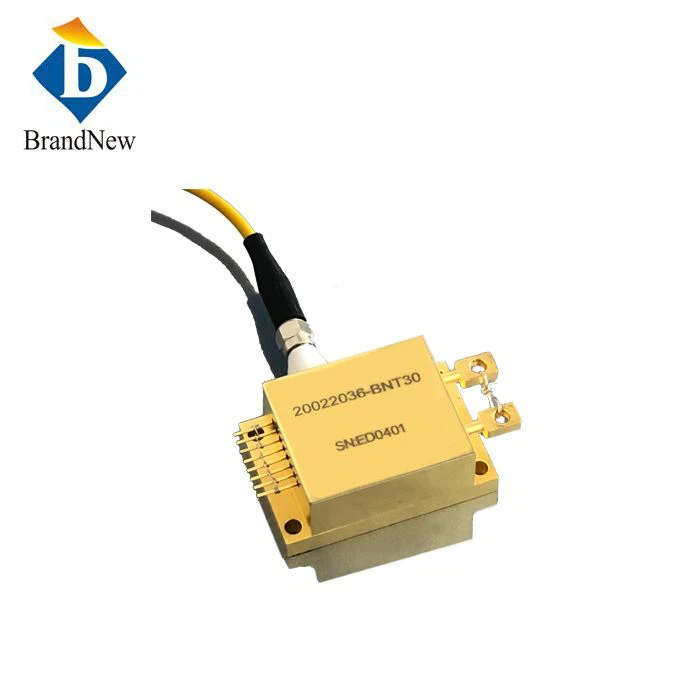

30W 1470nm CW Fiber Coupling Laser Diode With Aiming Beam For Medical Applications
These fiber coupled lasers have a variety of output powers and a broad range of wavelengths. For the pulsed lasers, they have pulse widths in femtosecond to nanosecond depending on the application’s needs. Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime.
Feature:
Low polarization sensitivity
Compact design, easy to use
High coupling efficiency
High reliability and stability
Application:
Optical coherence tomography
Fiber laser pumping
Spectrum analysis
RGB Illumination system
Medical treatment
Data Sheet
Item No: FC1470DL30
Item Name: 30W 1470nm CW Fiber Coupling Laser Diode With Aiming Beam
| Optical | |
| Center Wavelength | 1470±20nm |
| Output Power | 30W |
| Working Mode | CW |
| Fiber | |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Core | 400um |
| Fiber Length | 1~2m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 9A |
| Threshold Current Ith | 0.5A |
| Operating Voltage Vop | 26V |
| Thermal | |
| Operating Temperature | 15~55℃ |
| Storage Temperature | -30~70℃ |

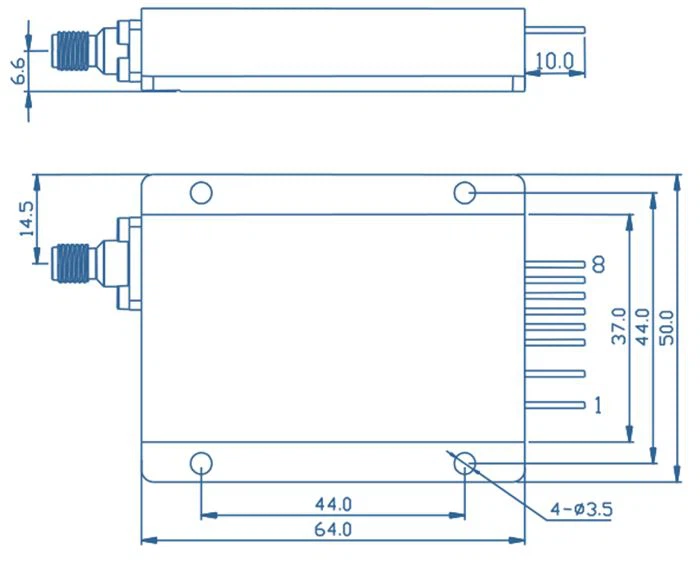

Drawing:
