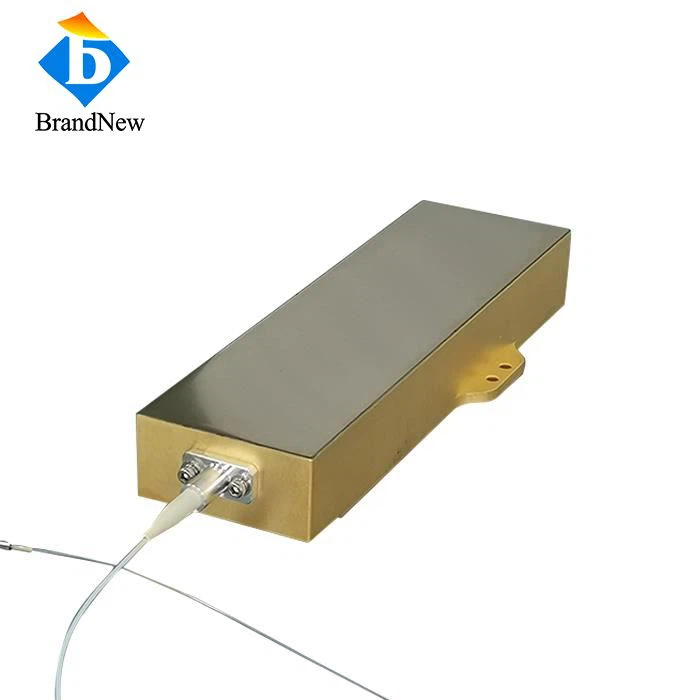

Fiber Coupled Laser Module

Fiber Coupled Laser Module

Multi wavelength and output power optional
Send Inquiry
Chat Now
Description

Fiber Coupled Laser Module

Hangzhou Yonghang Intelligence Co.,LTD

The advantages of fiber lasers include high efficiency, high reliability, high output power, strong tunability, compactness, and lightness. These advantages have led to a continuous increase in the penetration rate of fiber lasers in industrial production and a continuous growth in market share. For example, in the industrial field, lasers are widely used in cutting, welding, marking, engraving, cleaning, cladding, 3D printing and other processing technologies. With the transformation of the manufacturing industry towards high-end and intelligent, fiber lasers are increasingly used in industrial production due to their excellent performance and strong applicability

Features:

808nm, 9xxnm typical wavelength

Output power up to 750W

Parallel weld 2-Pin sealed package

Key appications: Laser Pumping, Material Processing, Medical Dental, Printing, Direct Diode Lasers

For more info, pls feel free to contact us via Email: info@brandnew-china.com

high power laser diode




Data sheet of hot product

Item no.: FC976DL100

Optical



Center Wavelength λ

976nm±10nm

Output Power

100W

Spectral Width FWHM

1nm

Slope Efficiency

12.6W/A

Fiber



Fiber Bend Radius

>30mm

Fiber Core/Cladding/Buffer Diameter

105um/125um/250um

Fiber Numerical Aperture

0.15NA

Fiber Length

1-2m

Fiber Connector

Bare/SMA905

Electrical



Operating Current Iop

10A

Threshold Current Ith

0.5A

Operating Voltage Vop

26.8V

Power Conversion Efficiency

45%

Thermal



Operating Temperature (Non-Condensing)

10~40℃

Storage Temperature (Non-Condensing)

-20~80℃

Wavelength Temperature Coefficient

~0.02nm/℃





Drawing

201905211505255847181
