Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 300w 755 808 1064 diode laser array. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

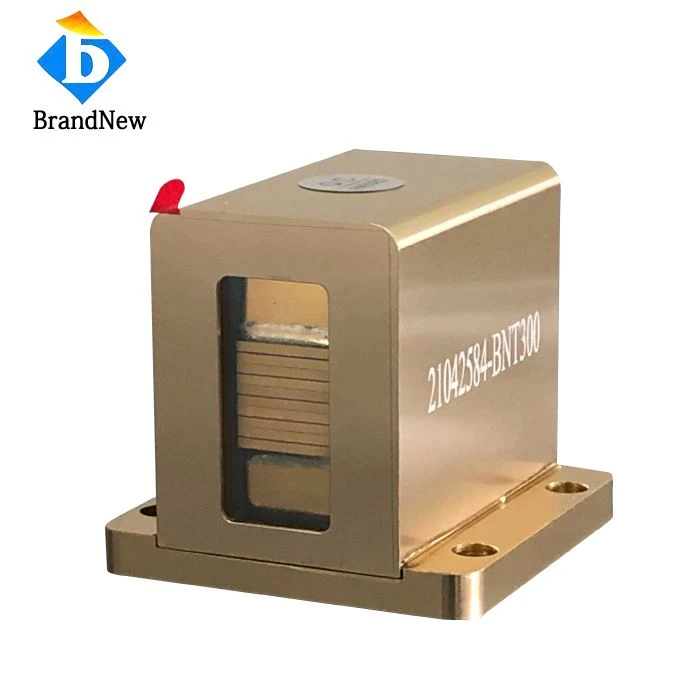

300W 755 808 1064 Diode Laser Array
Overview
Features:
300W output power with 3 wavelength
Small gap between laser bars
Germany bars, high reliability and stability
High brightness and efficiency
6Bar, 10Bar, 12Bar, 16Bar available
Application:
Beauty equipment Handle Piece Repairing
Skin Rejuvenation
Tattoo Removal
Medical Use, Industry Use
Data Sheet
Item No: WC808VS300
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 300W |
| Number of Bars | 6 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence (FWHM) | 12Deg |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | 50A |
| Threshold Current Ith | 10A |
| Operating Voltage Vop | 18V |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |

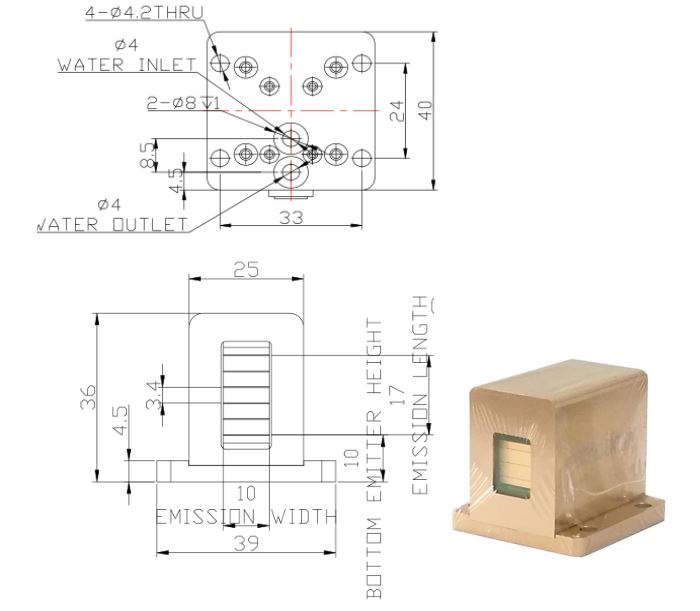

Package drawing:
Hot Tags: 300w 755 808 1064 diode laser array suppliers, manufacturers China, factory, wholesale, made in China
