Description
Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 808nm 250w diode laser array. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

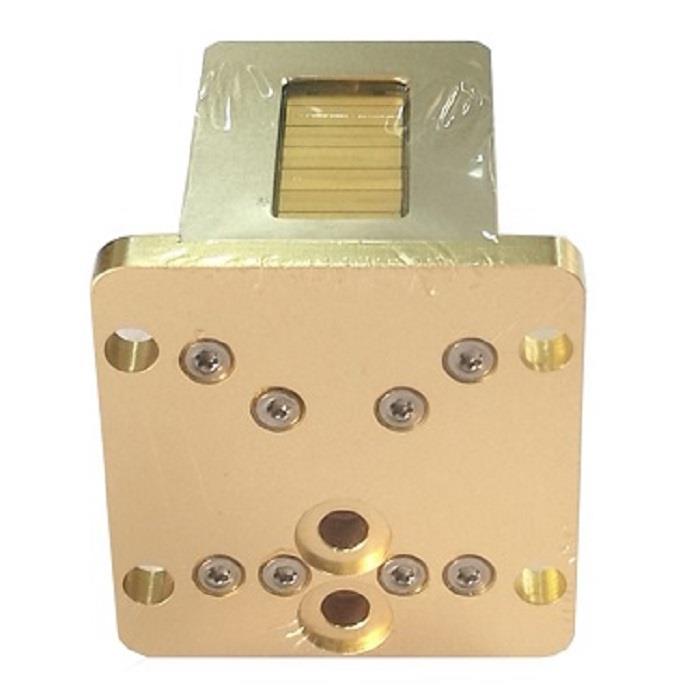

808nm 250W Diode Laser Array
Features:
Laser chips are from Jenoptik Germany.
Quality quality is 18 months.
Number of shots: 20 million
 |  |
Drawing:
Data sheet:
Item No.: WC808VS250
Item Name: 250W 808nm Water Cooled Vertical Stack Diode Laser
| Optical | |
| Center Wavelength | 808±10nm |
| Output Power | 50W/Bar |
| Number of Bars | 5 |
| Working Mode | QCW |
| Fast Axis Divergence | 38Deg |
| Slow Axis Divergence | 12Deg |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | 50A |
| Threshold Current Ith | 10A |
| Operating Voltage Vop | 9V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
