Diode Laser Array Bar

Diode Laser Array Bar

Wavelength:755nm 808nm 1064nm for your choice
Send Inquiry
Description

Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced diode laser array bar. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.



Diode Laser Array Bar

Product Description

An 808nm Diode Laser Array Bar refers to a specific type of laser diode that emits light at a wavelength of approximately 808 nanometers (nm). This falls into the near-infrared region of the electromagnetic spectrum. 808nm Vertical Stack array diode laser represents the wavelength of the laser output. 808nm Vertical Stack array diode laser that emit at this wavelength have a variety of applications, including medical procedures, material processing, telecommunications, and scientific research. In the medical field, 808nm Vertical Stack array diode laser is often used in dermatology for hair removal and skin treatments due to their ability to be absorbed by melanin in hair follicles and skin tissue. In addition, these 808nm Vertical Stack array diode laser are used in laser pumping systems, and their specific wavelength is well suited for certain types of solid-state lasers

This stack modules are actively water cooled to enable low thermal resistance and high output power without sacrificing lifetime.

>Diode laser bar from Germany

>Quality Warranty is 20 months

>Number of shot: No limitation

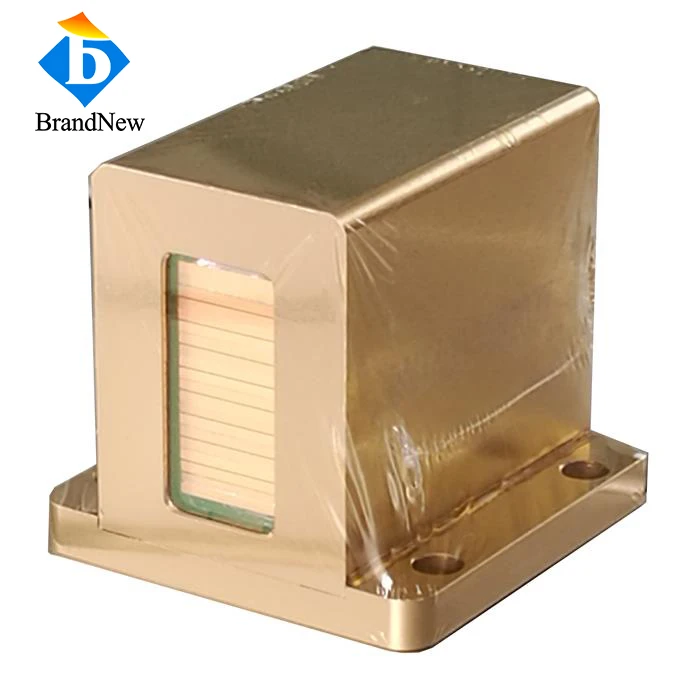

10bars 808 Diode Laser


Data sheet

Item No.:WC808VS600



Optical Typical Value
Center Wavelength 808nm
Output Power 600W
Number of Bars 10
Fast Axis Divergnece

38Degree

Slow Axis Divergnece 12Degree
Electrical
Operating Current ~50A
Threshold Current ~10A
Operating Voltage ~18V
Thermal
Operating Temperature(No Condensation) 20~30℃(No Condensation)
Storage Temperature(No Condensation) 0-55℃(No Condensation)
Others
Coolant Filtered Water
Flow Rate/Bar 3.5L-4.5L/min
Max Inlet Pressure 400kPa
Water temperature(No Condensation) 15-25℃(No Condensation)
Filtered Water Particles <20um



Package Drawing

5W}WVDO{VZH5M95{56``D~B
