Description

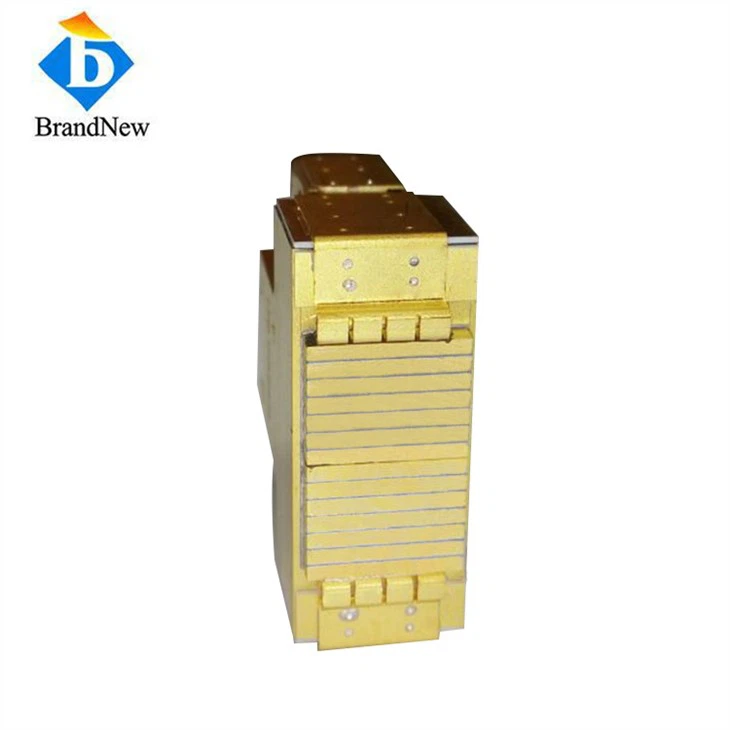

12 Bars Lasertel T6 Diode Laser Stack
KEY FEATURES:
Compact size
Clean beam shape
High flexibility and reliability
Ausn soldering Package
Low pressure and water flow requirements
Special design for hair removal application
Data sheet
Item No.:WC808T1200
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 100W |
| Number of Bars | 12 |
| Fast Axis Divergence(FWHM) | 70Deg |
| Slow Axis Divergence (FWHM) | 12Deg |
| Emitter Size | 10x13.2mm |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 20A |
| Operating Voltage Vop | 24V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | -40-80℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Package Drawing
