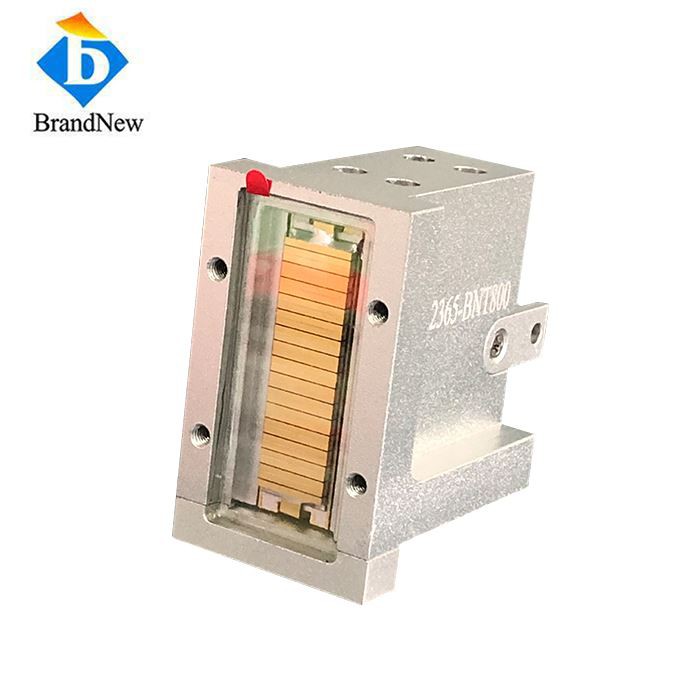

Diode Bar for PZ Laser Repair
Features:
10bars 600W, 16bars 800W optional
Germany imported laser bar
Over 30million shots lifespan and 20 months warrantyMacro channel with simple water cooling and no strict requirement for water quality
Special shell size for PZ Laser and Apolomed handpiece
Data sheet
Item No.: WC808VS600
Optical | |
Center Wavelength | 808nm |
Wavelength Tolerance | ±10nm |
Working Mode | QCW |
Output Power Per Bar | 60W |
Number of Bars | 10 |
Bar to Bar Spacing | 2mm |
Pulse Width | 1~400ms |
Duty Cycle | 0.1~40% |
Electrical | |
Operating Current Iop | 50~60A |
Threshold Current Ith | 11~17A |
Operating Voltage Vop | 19~21V |
Power Conversion Efficiency | 45~48% |
Thermal | |
Operating Temperature | 15~30℃ |
Storage Temperature | 0-55℃ |
FAQ:
Do you offer guarantee for the products?
Yes, all products have been tested before shipping out.
Lifelong technique support. 2 years warranty.
How to proceed an order?
1. Contact us for more details by email
2. We send PI to you for payment, payment term is T/T or Western Union
3. Once payment is done, we will arrange production
4. Delivery time is 1-2 weeks depends on different order qty and request.
5. After delivery, we will send you DHL UPS FedEx TNT tracking no.
