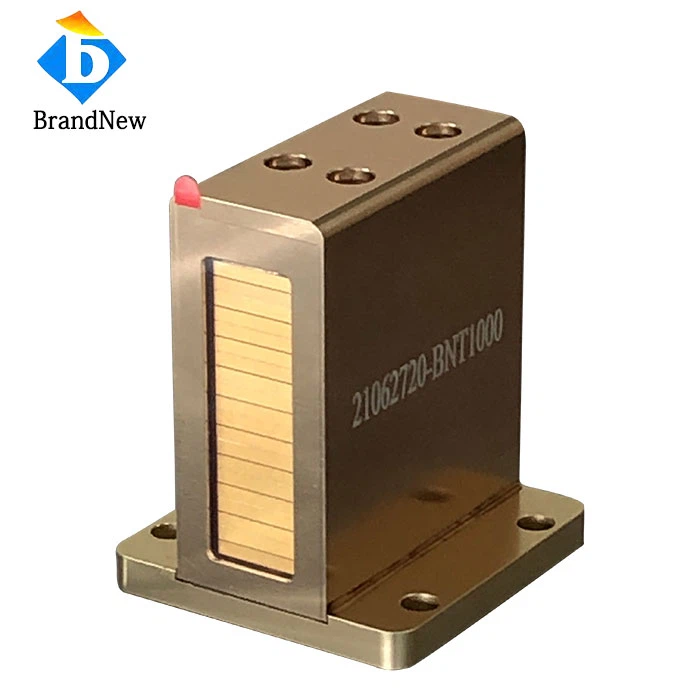

Weifang KM 10Bar Laser Stack 1000W
Features:
10Bars, 100w per bar, 1000W output
808nm wavelength or multi-wavelength 760nm, 808nm, 1064nm in a single stack module
Bars come from top brand American Coherent and Germany Jenoptik
Hard solder AuSn for high stability and reliability
Macro channel cooling structure, easy to use
Square light spot, good energy concentration
Front window plate with anti-reflection film for less power loss;
Manufactured in cleanrooms and fully sealed with nitrigen inside for excellent environmental compatibility.
Applications:
Hair removal handpiece replacement and repair.
Compatiable with Weifang KM machine.
Spec sheet:
Item No: WC808VS1000
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Working Mode | QCW |
| Output Power Per Bar | 100W |
| Number of Bars | 10 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current | ~100A |
| Threshold Current | ~10A |
| Operating Voltage | ~18V |
| Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
| Others | |
| Coolant | Distilled Water |
| Flow Rate/Bar | 4~6L/min |
| Max Inlet Pressure | 350~500kPa |
| Water Temperature(No Condensation) | 23~27℃ |
| Filtered Water Particles | <20μm |
Drawing:
