Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced alma diode laser stack lasertel t6. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

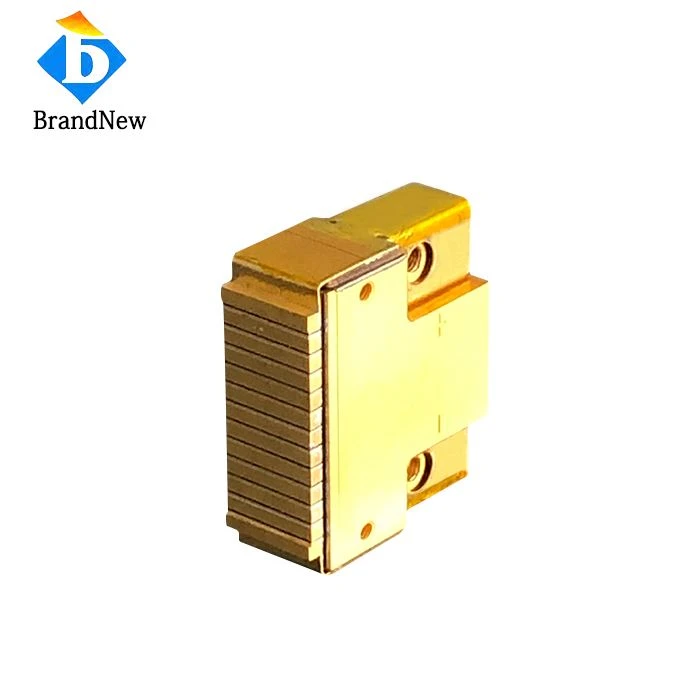

Alma Diode Laser Stack Lasertel T6
Feature
12 laser bars, our laser bar is imported from Germany
808nm central wavelength, 1200W ouput power
Ausn soldering Package
Small gap between laser bars,<10um filtered water particles
Special design for Alma hair removal machine
Application
Acne Treatment
Permanent Painless Hair Removal
Laser surface hardening
Scientific research
Repairing procedure
>Choice A: Send the old broken hand piece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new hand piece back to you.
>Choice B: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hand piece.
Data sheet
Item No.:WC808T1200
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 100W |
| Number of Bars | 12 |
| Polarization Mode | TE |
| Emitter Size | 10x13.2mm |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 20A |
| Operating Voltage Vop | 24V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | -40-80℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Package Drawing
