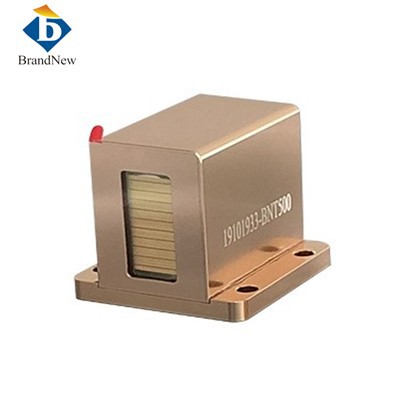

Diode Laser Stack Module for Epilator
Advantages:
1. including 808nm/1064nm/755nm band optical output, which has wide applicability.
2. customers can select different band output according to their own needs.
3. Apply to different types of skin, different thickness of hair, different shades of hair, and has the effect of skin rejuvenation.
features:
Compact Design
Vertical Stacking allows for a more compact arrangement of laser diodes, enabling higher power density in a smaller space.
High Power Output
Vertical stacked laser diodes are often used to achieve higher total power output by combining the outputs of multiple laser diodes. This is useful in applications where a high-power laser beam is required.
Data sheet
| Optical | |
| Center Wavelength | 755nm/808nm/1064nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 50W/60W |
| Number of Bars | 10 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~50A/60A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~19V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Drawing
