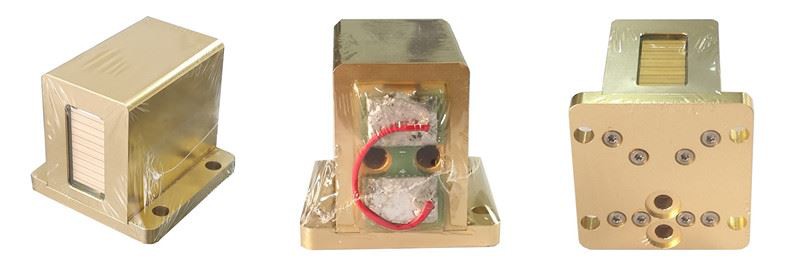

IPL Laser Diode Stack Module
IPL Laser Diode Stack Module is macro channel laser stack. Macro channel is the way for diode laser bar heat-dissipation. It is like a man standing on the ice with his feet surface cooling down. It can not be compared with a micro channel cooling stack. But also this kind of diode laser stack with some holes inside for water recycling. You see diode laser bars are mounted on a big stack of metal with covered copper directly. They can not fully contact the waterway 100%. So water cooling is not easy. Also, this kind of stack calls for high profession to do the holes for cooling too especially for the waterway design.
Features:
10 bars, number of bars can be customized
working current is 50A, power can be 600w
808nm or mix wavelength 755,808,1064nm
Stand size with Ausn mounting technology

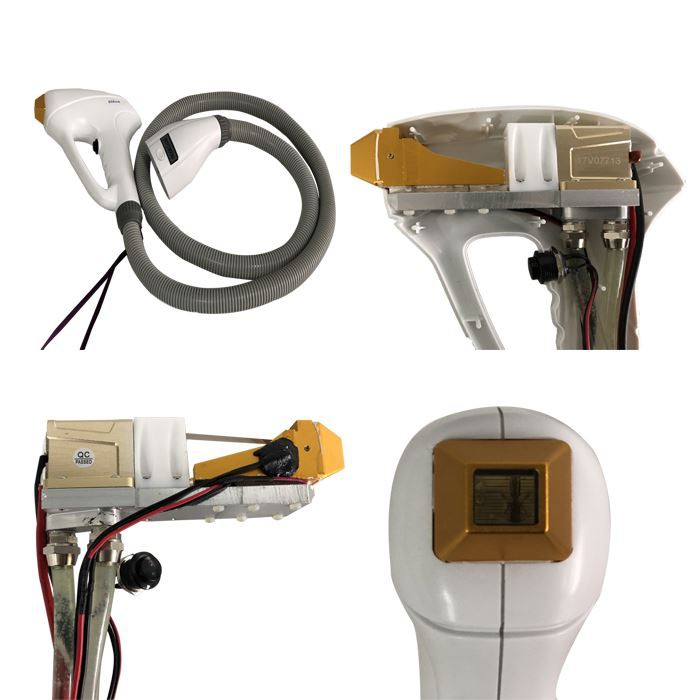

Compatible to most of Chinese Hair removal machine
Macro channel with simple water cooling and no strict requirement for water quality
Data sheet
Item No.:WC808VS600
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 60W |
| Number of Bars | 10 |
| Electrical | |
| Operating Current Iop | ~50A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~19V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Package Drawing
