Description

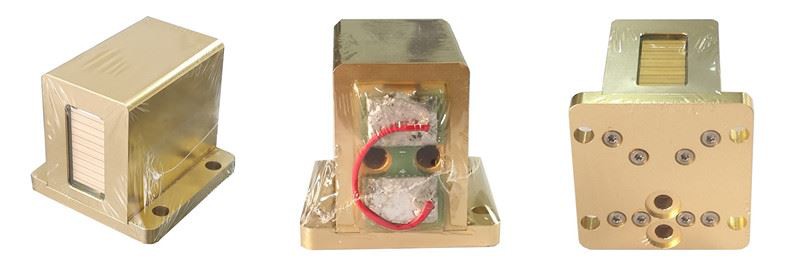

Laser Diode Bar Array
Features:
1. Bars come from top brand American Coherent;
2. Hard solder AuSn for high stability and reliability;
3. Macro channel cooling structure, easy to use;
4. Square light spot, good energy concentration;
5. Front window plate with anti-reflection film for less power loss;
6. Manufactured in cleanrooms and fully sealed with nitrigen inside for excellent environmental compatibility.
For more info, pls contact me freely! （info@brandnew-china.com）
Data sheet
Item No.:WC808VS600
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 60W |
| Number of Bars | 10 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~50A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~19V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Package Drawing
