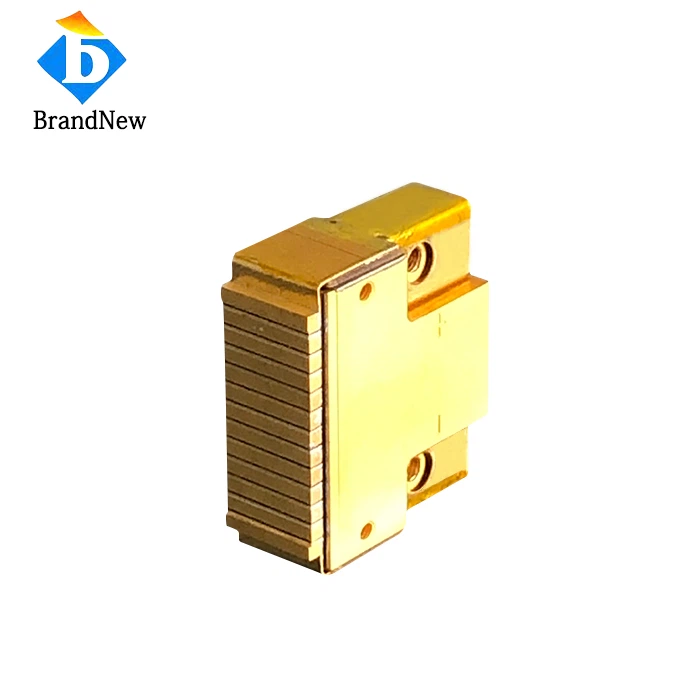

The 755nm, 808nm and 1064nm wavelengths are designed for precise hair removal applications. With 1200W of output power and 12 beams, it delivers efficient, high-energy performance. The diode's customized pulse width and frequency settings ensure optimal treatment results for all skin types and hair textures. Robust thermal management, including a specific operating temperature range and an effective cooling system, ensures reliability and longevity, making it an ideal component for professional-grade hair removal solutions.
This is the ideal choice for hair removal. Each wavelength targets different hair types and skin depths.
The 755nm wavelength is suitable for fine and light colored hair.
The 808nm wavelength has a medium depth of penetration and is suitable for most hair types, while the 1064nm wavelength has a deeper penetration.
The 1064nm wavelength provides deeper penetration and is ideal for darker skin tones and ingrown hairs.
Multi-Wavelength Laser: Three central wavelengths (755nm, 808nm, and 1064nm), covering a range of hair types and skin tones for comprehensive and effective hair removal.
High Power and Precision Control: The high output power of 1200W,pulse width of 40ms and a frequency of 1Hz further offer precise treatment control.
Optimized Beam Characteristics: The fast axis divergence of 38 degrees and slow axis divergence of 12 degrees indicate a focused and well-controlled laser beam.
Date sheet
Item No.: WC781T1200
| Optical | |
| Center Wavelength | 755nm 808nm 1064nm±10nm |
| Output Power | 1200W |
| Working Mode | QCW |
| Number of Bars | 12 |
| FWHM | 38/12Deg |
| Pulse Width | 40ms |
| Frequency | 1Hz |
| Electrical | |
| Threshold Current Lth | 25A |
| Operating Current Lop | 100A |
| Operating Voltage Vop | 24V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | 0-55℃ |
| Coolant | Distilled Water |
| Flow Rate/Bar | 4L/min |
| Max Inlet Pressure | 350~500kPa |
| Water Temperature(no condensation) | 23~27℃ |
| Filiter Water Particles | <20um |
Drawing:
