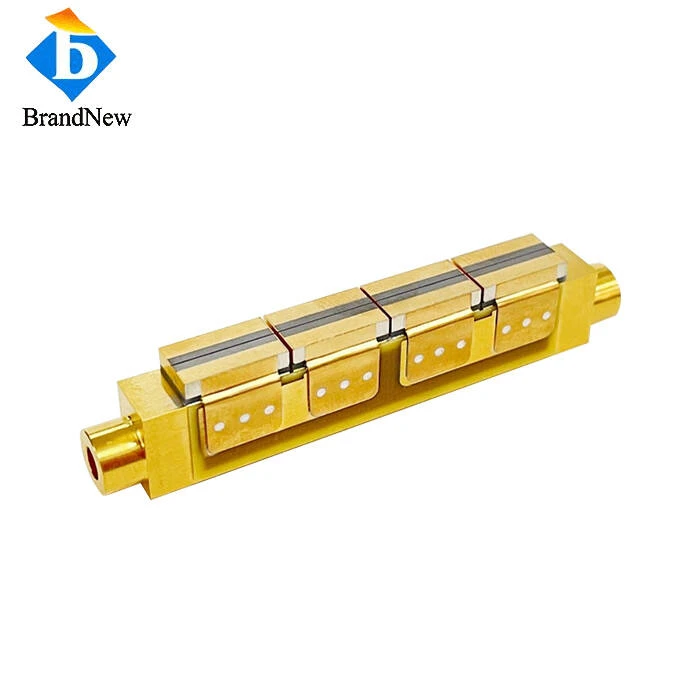

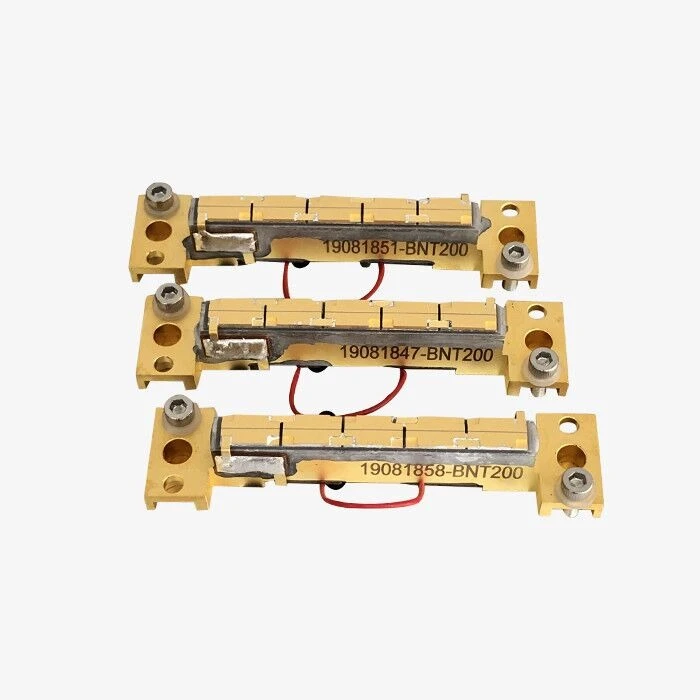

200W 808nm 5 Bars Diode Laser Array

Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 200w 808nm 5 bars diode laser array. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

200W 808nm 5 Bars Diode Laser Horizontal Array



Features:

• 808nm near-infrared wavelength
• 200W continuous-wave (CW) via a 5-bar horizontal array
• Array alignment structure minimize energy loss

Applications:

• Industrial Material Processing: Suitable for cutting, grooving and synthetic diamond tools,200W CW enabling efficient material removal while maintaining processing precision.
• High-Power Solid-State Laser Pumping: Acts as a reliable pump source for Nd/Yb-doped solid-state lasers,used in metal cutting, welding and 3D printing equipment.
• Large-Area Material Annealing: Applied in semiconductor wafer doping, thin-film coating annealing and metal surface hardening processes

The 200W 808nm 5-bar CW horizontal diode laser array is a high-stability optical source optimized for industrial processing and laser pumping applications. Its 5-bar array design, efficient thermal management and CW operation mode address the core demands of continuous high-power output and uniform beam quality in super-hard material processing and laser system integration.

Data Sheet

Item No: WC808HA200

Drawing:
