Description

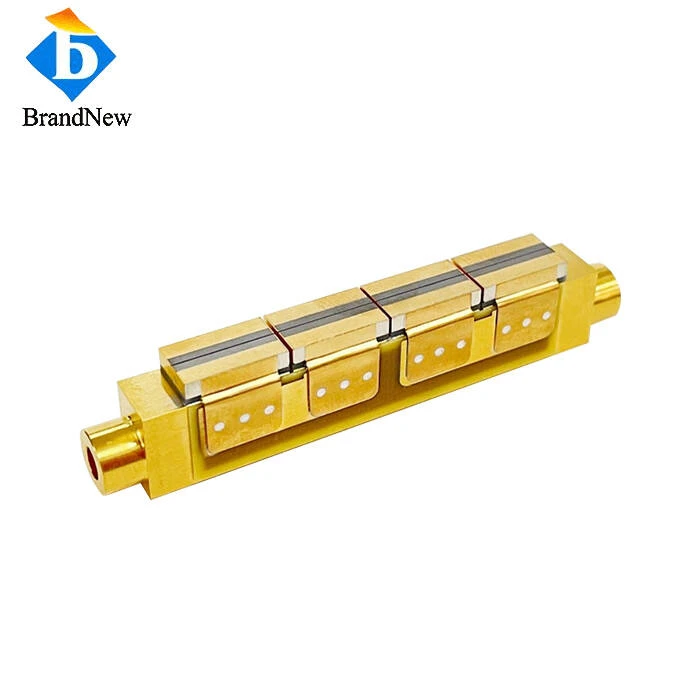

4Bars 808nm 80W Horizontal Diode Laser Array
Features:
- 808nm near-infrared wavelength with 80W QCW output
- 4-bar horizontal array design
- 1Hz low pulse repetition frequency
Applications:
- High-Power Laser Pumping: Core pump source for Nd:YAG solid-state lasers
- Industrial Material Processing: Applied in large-area thin-film annealing, semiconductor wafer doping
- Medical & Aesthetic Equipment: Used in high-intensity infrared therapy devices and laser hair removal systems
- Scientific Research: Ideal for laser-induced breakdown spectroscopy (LIBS) experiments
The 4-bars 808nm 80W horizontal diode laser array combines QCW operation with 1Hz frequency, delivering high-energy pulses and uniform beam quality in a compact array structure. Its optimized thermal design and low repetition frequency make it a reliable high-power light source for laser pumping, industrial processing, and scientific research applications that demand intermittent high-energy output.
Data Sheet
Item No: WC808HA80
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±5nm |
| Output Power | 80W |
| Number of bars | 4 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Pulse Width | <200ms |
| Frequency | 1Hz |
| Electrical | |
| Operating Current Iop | 25A |
| Threshold Current Ith | 8A |
| Operating Voltage Vop | 7V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | 0~55℃ |
Drawing:
