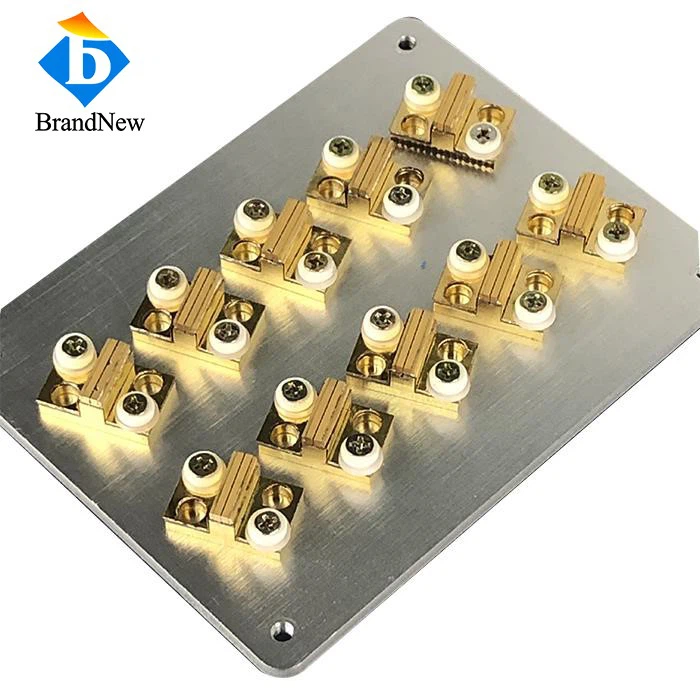

Pulsed Laser Diode Bar Module
This is a compact laser diode (LD) bar module with a peak radiant power of 600W. By using a passive cooling with thermal conductivity and eliminating the need for chillers, it provides for greater design flexibility when assembling a equipment. It can be used for a variety of applications, such as pumping of solid state laser and laser heating.
Features:
Enhanced Beam Combining: Horizontal stacked laser diodes can facilitate certain beam combining techniques more effectively than vertical arrays. This is particularly relevant in applications where multiple laser beams need to be combined into a single, more powerful beam.
Applications:
Pumping of solid state laser
Laser heating
Data sheet:
Item No.: CC808HA600
| Optical | Typical Value |
| Center Wavelength | 808±10nm |
| Output Power | 600W |
| Quantity of Bars | 6 |
| Working Mode | QCW |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Frequency | 100Hz |
| Pulse Width | <200us |
| Duty Cycle | <2% |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 15A |
| Operating Voltage Vop | 12V |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | 0-55℃ |
Package drawing:
