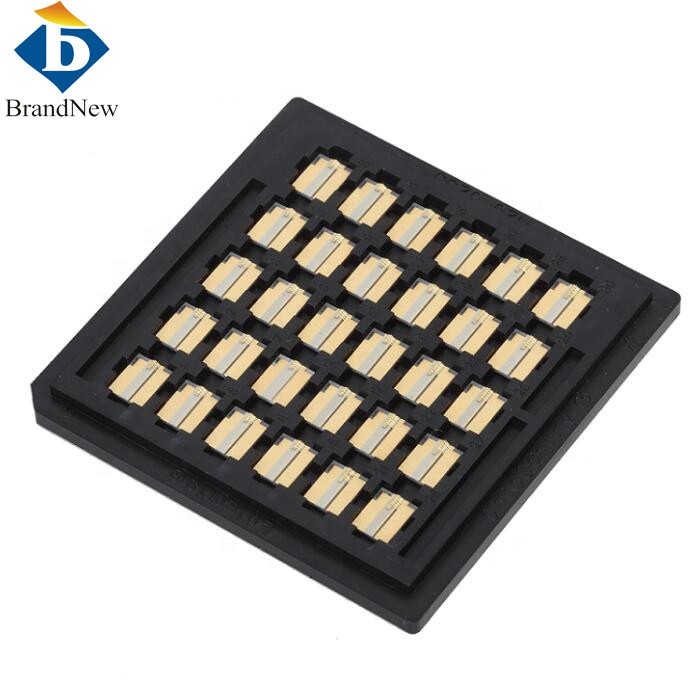

2W 808nm COS Laser Diode Vascular Treatment
The 808nm 2W Chip on Submount (COS) Laser Diodes offered by BrandNew are an outstanding option for customers in search of state-of-the-art, high-power performance within a cost-effective standard submount design. Available across the wavelength range of 8XX to 9XX, these diodes come in a diverse array of configurations. BrandNew's COS devices, find applications in OEM medical equipment, pump sources, military targeting systems, Optical Time-Domain Reflectometry (OTDR), range finding applications, and illumination purposes. For customers with specific needs, custom wavelengths and configurations are readily available upon request, ensuring the utmost versatility and adaptability for a wide range of applications.
Feature
High conversion efficiency;
Working life > 10000h;
Low dark current, Low capacitance;
High reliability, Long operation life;
Customized products for customers.
Application
Industry;
Pump;
Illumination;
Medical treatment.
Specification
Item Number: COS808DL2
| Optical | |
| Center Wavelength | 808nm±10nm |
| Output Power | 2W |
| Emiter Width | ≤100um |
| Electrical | |
| Threshold Current Lth | 0.25A |
| Operating Current Lop | 1.2A |
| Operating Voltage Vop | 1.8V |
| Thermal | |
| Test Temp. | 25℃ |
Laser size:
