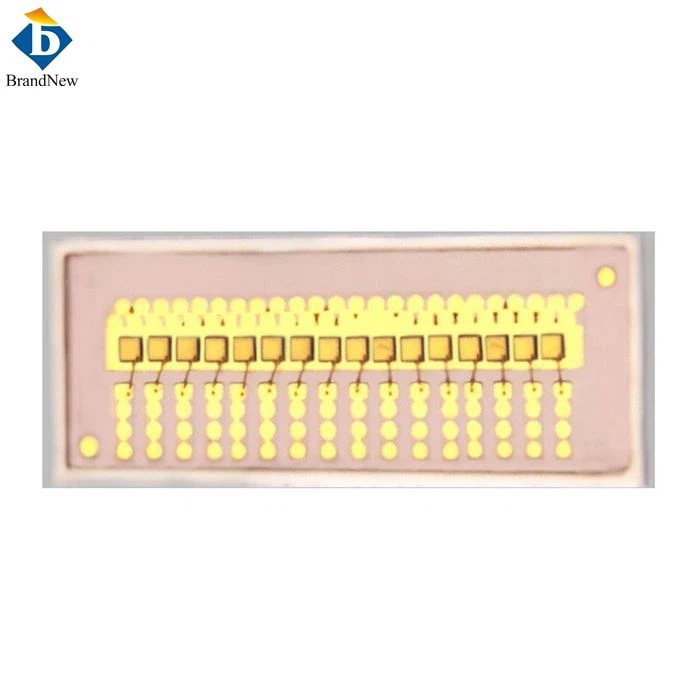

16 Channel 50W 850nm VCSEL Array
Features
850nm Multimode VCSEL, 940nm wavelength also available
SMT compact package
Oxide isolation technology
Individually operating
Applications
Lidars
Range finder sensors
Laser curtain
3D detection
Proximity sensors
Military applications
Specifications:
|
Parameters |
Typ. |
|
Pulse Optical Power |
50W |
|
Threshold Current |
0.1A |
|
Forward Pulse Current |
120A |
|
Emission Area |
370*371um |
|
Peak Wavelength |
850nm/940nm |
|
Pulse Forward Voltage |
38V |
| Series Resistance | 0.46Ω |
|
Beam Angle |
20Degrees |
|
Wavelength Shift |
0.07nm/℃ |
|
Rise time |
2ns |
|
Soldering Temperature |
260℃ |
|
Case Operating Temp |
-40~85℃ |
|
Storage Temp |
-40~105℃ |
| Substrate | Al2O3 |
Drawing:
Other package options:
![~Z]Y2GA]6$M]W1WW9{2$$FG](/Content/uploads/202098745/20200511160832b30f482d1b87452f96ea4514ab9b8ba2.jpg "product-1-1")
![I49PHZD9K{0]_8RJIYQ$P62](/Content/uploads/202098745/20200511160944d855ff17832a4734b963a000d6fbf95d.jpg "product-1-1")
![SZ0U_DK9XEKH{7M]EH[GO3U](/Content/uploads/202098745/2020051116102792d86ebd752d4facaad7f5bbeb1d161d.jpg "product-1-1")
![2UDW4RSLFND[T[]1UF(2X~T](/Content/uploads/202098745/20200511161233875d1dd575d34c8aae61b588a986b667.jpg "product-1-1")
FAQ:
Could you do OEM(design and manufacture lasers for customer)?
Yes, we we have professional R&D team including software, hardware, electronics and designers 3D department and have enough ability to manufacture lasers completely according to customer's requirements.
Do you offer guarantee for the products?
Yes, all products have been tested before shipping out.
Lifelong technique support. 2 years warranty.
