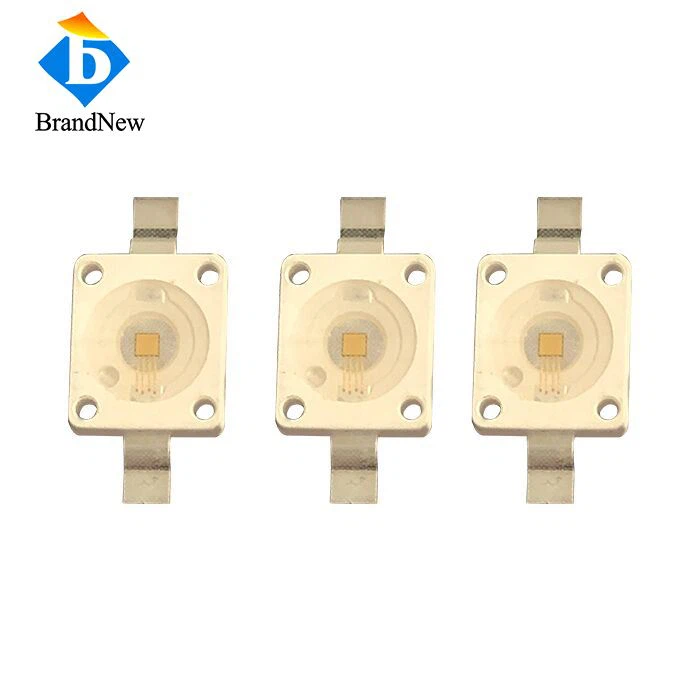

200mW 850nm VCSEL Diode
Overview
Main features:
Low wavelength drift
Oxide Isolation Technology
Low threshold current
High reliability
Applications:
3D sensors
Lidars
IR illumination
Medical application
Proximity sensors
Military Application
Specifications:
|
Parameters |
Typ. |
|
Pulse Optical Power |
200mW |
|
Threshold Current |
50mA |
| Emission Area |
226*215um |
|
Peak Wavelength |
850nm |
|
Laser Forward Voltage |
2.4V |
|
Beam Angle |
20Degrees |
|
Wavelength Shift |
0.07nm/℃ |
|
Case Operating Temp |
-40~85℃ |
|
Storage Temp |
-40~105℃ |
LIV Graph and Wavelength
![IE_%PPIPBGC]INH8D7GX~9X](/Content/uploads/202098745/20200526145252bbb92d37df8e4583ae580f8efa11c841.png "product-1-1")
Package drawing:
