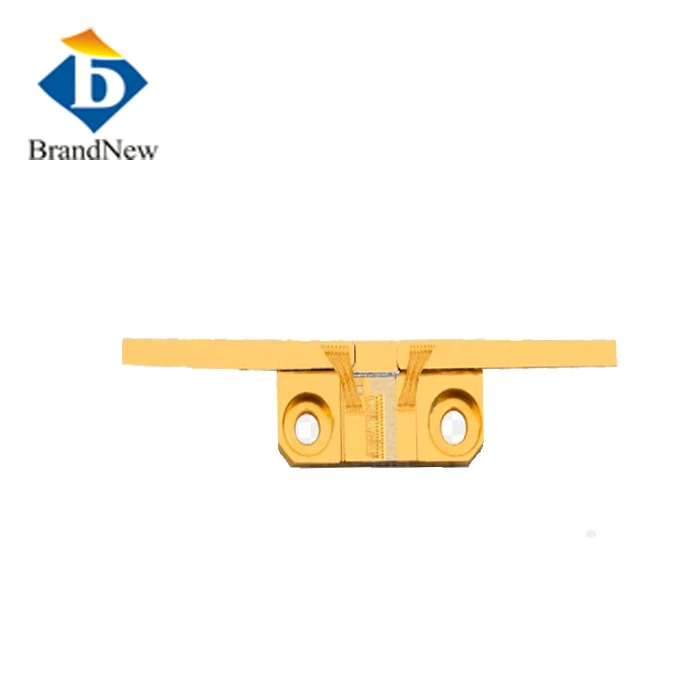

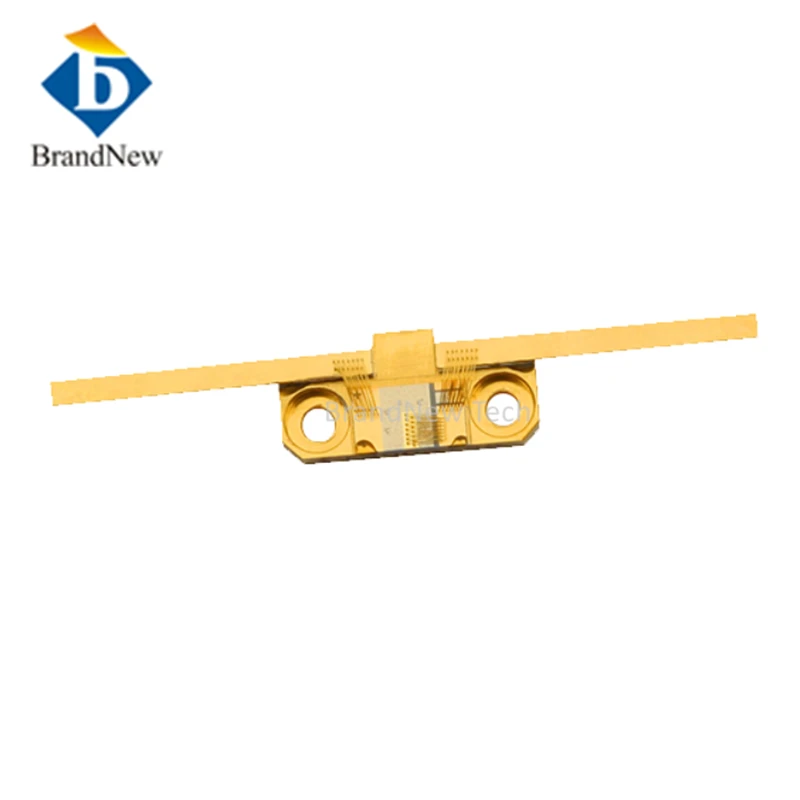

22W 940nm F Mount With FAC Laser Diode
Features:
- 22W CW output at 940nm with ±10nm wavelength tolerance.
- Integrated with FAC for symmetrical 10° beam divergence.
- 190μm width to support reliable high-power optical emission.
Applications:
- Serves as a pump source for solid-state lasers and fiber laser amplification systems.
- Applied in industrial plastic welding and localized thermal processing tasks.
- Deployed in medical phototherapy equipment for tissue photobiomodulation treatment.
- Suitable for optical illumination and infrared spectroscopy detection systems.
This 22W 940nm F-mount laser diode comes with FAC collimation, delivering symmetric beam quality and stable CW power output. The F-mount package enables convenient thermal mounting and mechanical integration. It features robust optical performance, widely used for laser pumping, industrial thermal processing, medical phototherapy and infrared optical measurement systems.
Data Sheet
Item No: FM940KZ22
| Optical | Typical Value |
| Center Wavelength | 940±10nm |
| Output Power | 22W |
| Working Mode | CW |
| Emitter Width | 190um |
| Fast Axis Divergence FWHM | 10Degree FAC |
| Slow Axis Divergence FWHM | 10Degree |
| Electrical | |
| Operating Current Iop | 22A |
| Threshold Current Ith | 2A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |

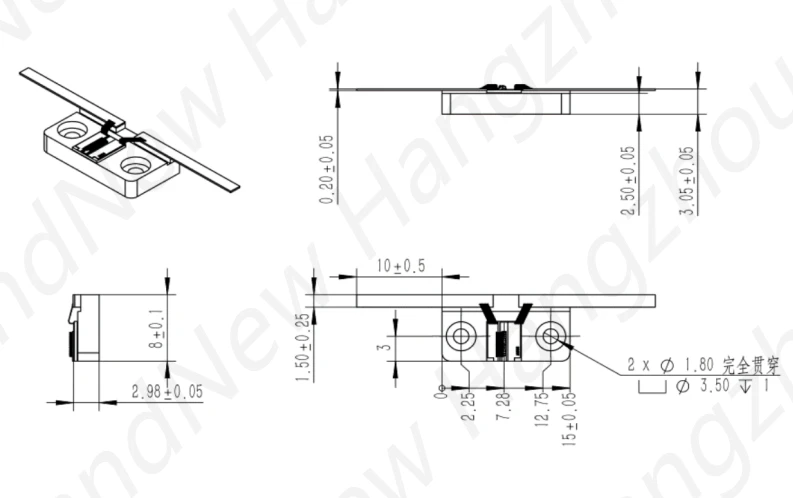

Drawing:
