Description
Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced best value 808nm vertical stack laser diode 800w. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

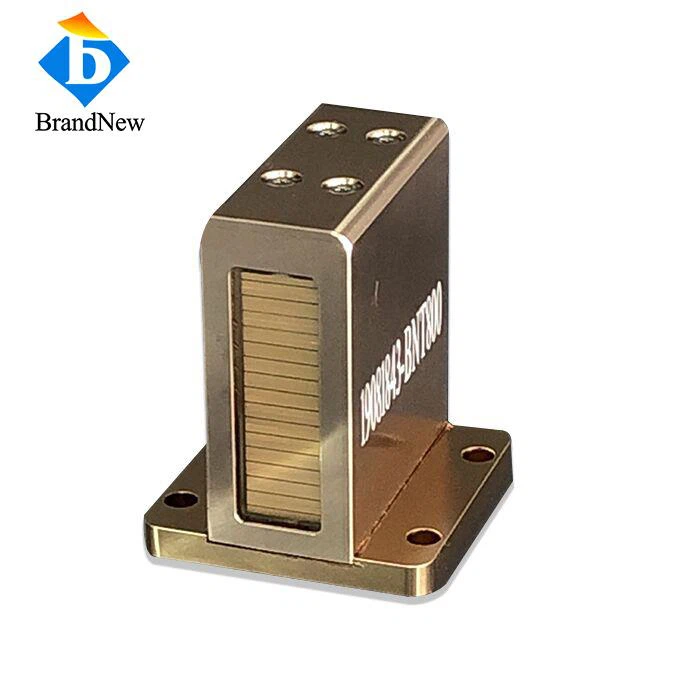

16Bars 800W 808nm Macro-channel Water Cooled Diode Laser Stack
Features:
Germany imported laser bar
Warranty: 18 months, >50 million shots
Special design for hair removal application
Wavelength can be single 808nm or Triple(755nm,808nm,1064nm)
The stack can be 16bars or 10bars
Item no. WC808VS800
| Optical | |
| Center Wavelength | 755nm/808nm/1064nm |
| Wavelength Tolerance | ±10nm |
| Output Power Per Bar | 50W/Bar |
| Number of Bars | 16 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Electrical | |
| Operating Current Iop | ~45A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~28V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
Detailed Drawing:
