20W 808nm F mount Laser Diode

20W 808nm F mount Laser Diode

Item No:FM808DL20
Send Inquiry
Description

Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 20w 808nm f mount laser diode. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

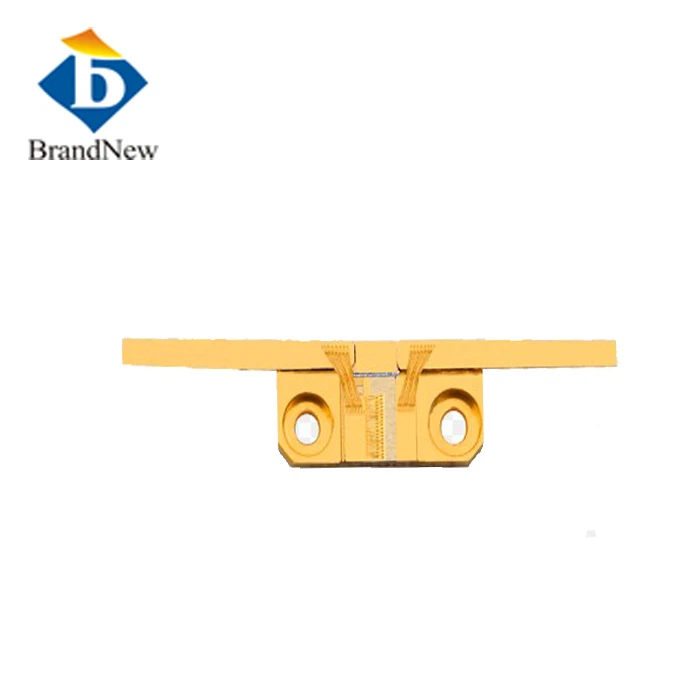

20W 808nm F-mount Laser Diode

Feature:

  • FAC Lens:Optional
  • Output power:20W
  • High reliability


Application:

  • Scientific research
  • Medical aesthetics
  • Range finding
F-Mount 2

Our product is a semiconductor chip manufactured in Germany, with high reliability and a surface that boasts exceptional brightness. Under rigorous testing, it has demonstrated superior stability and can withstand harsh environmental conditions. For consumers, this means a product that is both high-performing and perfect for a variety of applications.



Specifications:

Item No: FM808DL20

Optical
Center Wavelength 808nm
Wavelength Tolerance ±10nm
Output Power

20W

FAC Lens Optional
Fast Axis FWHM 40Deg
Slow Axis FWHM 12Deg
Emitter Width 400um
Electrical
Operating Current Lop 25A
Threshold Current Lth 3A
Operating Voltage Vop 2V
Thermistor
Test Temperature 25℃
Storage Temperature -40~80℃
Wavelength Temperature Coefficient 0.35nm/℃



Drawing:



product-781-448product-827-458
