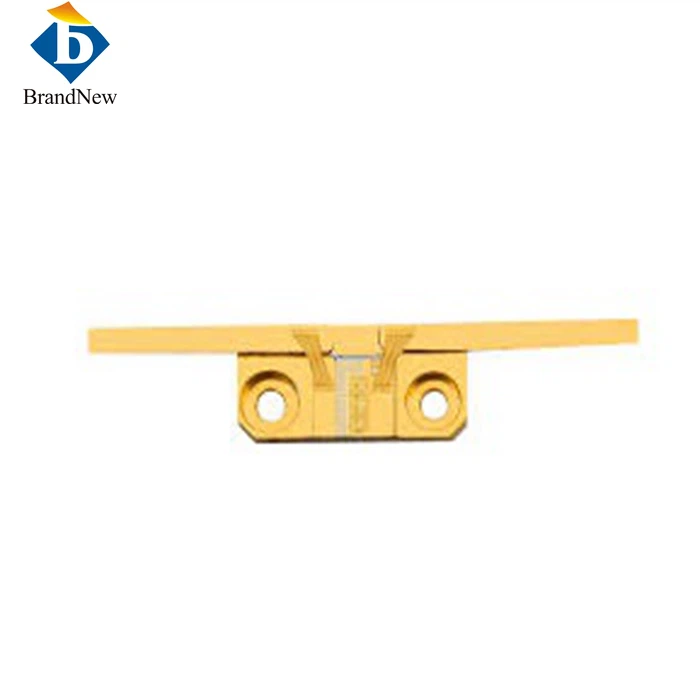

808nm 6W Uncooled F Mount Laser Diode Module for Laser Equipment
Features：
- F-Mount package for excellent thermal management and easy integration
- Optional FAC (Fast Axis Collimator) lens for improved beam quality and higher coupling efficiency
- High reliability and long lifetime
Applications：
- Diode-pumped solid-state (DPSS) laser pumping
- Medical and aesthetic laser systems (e.g., hair removal, physiotherapy)
- Industrial laser equipment for material processing and alignment
- Scientific research and experimental setups
Spec sheet:
Item No.: FM808DL6
Item Name: 6W 808nm F mount Diode Laser
| Optical | |
| Center Wavelength λ | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 6W |
| Working Mode | QCW |
| Electrical | |
| Operating Current Iop | 13A |
| Threshold Current Ith | 1A |
| Operating Voltage Vop | 2.2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | ～0.3nm/℃ |
Drawing
The 808nm 6W uncooled F-mount laser diode with FAC lens provides improved beam control and coupling performance.
The FAC lens collimates the fast axis of the laser beam, which normally has a wide divergence angle.
This makes the beam more uniform and easier to focus or couple into optical systems such as lenses or fibers.
In short, the FAC helps achieve better beam quality, higher coupling efficiency, and easier system integration - which is especially important in precision laser applications.
Typical Applications：
- DPSS laser pumping
- Medical and aesthetic systems (e.g., hair removal, physiotherapy)
- Laser alignment and illumination
- Material processing equipment
- Scientific and research applications
