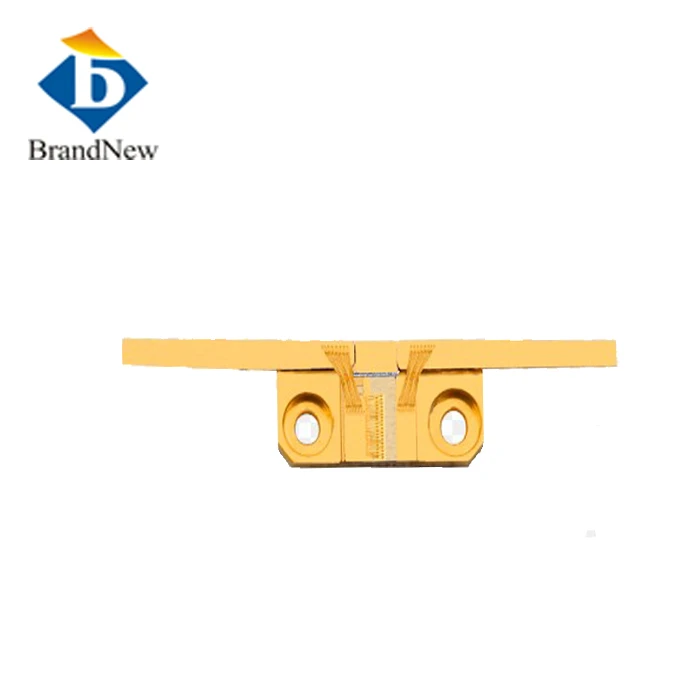

10W 808nm F-Mount Laser Diode with FAC
10W 808nm F-Mount Laser Diode with FAC are an excellent choice for customers seeking state-of-art performance in a low cost submount design. These lasers are provided across the InP wavelength range of 7xx to 19xx and come in a variety of power, wavelength and lensed configurations. Applications for Brandnew’s sub mounted lasers include OEM medical, consumer medical, LiDAR, Military targeting, range finding and illumination. Custom wavelengths and configurations available upon request.Grin Lens f=274um used to match fast axis divergence to slow axis divergence.
Features:
High reliability
High stability
Harsh environment applications
High brightness
AuSn bonding
Spec sheet:
Item No.: FM808KZ10
| Optical | |
| Center Wavelength λ | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 10W |
| Fast Axis Divergence | 10Deg |
| Slow Axis Divergence | 10Deg |
| Electrical | |
| Operating Current Iop | 13A |
| Threshold Current Ith | 1A |
| Operating Voltage Vop | 2.2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Package Drawing
