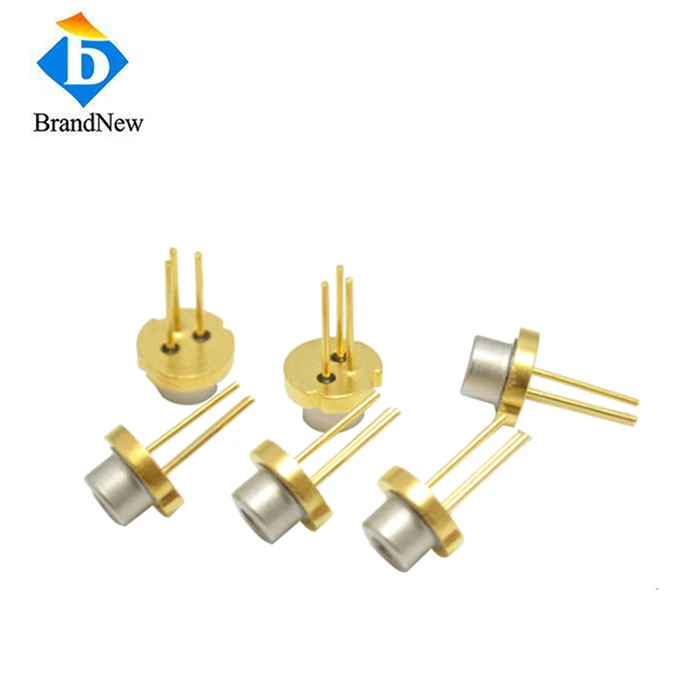

150W 905nm TO56 2Pins Laser Diode TO Mount
Features:
- Stable 150W rated power and up to 180W pulsed output.
- Support adjustable pulse width from 1ns to 100ns.
- Compact light-emitting chip size of 110μm*30μm.
Applications:
- Laser ranging, laser sensing and LiDAR detection systems for industrial and smart vehicle applications
- Medical optical detection, miniature medical laser sensing and biomedical auxiliary diagnostic equipment
- High-precision pulse optical testing and photoelectric sensing experimental devices
- Intelligent monitoring, security detection and short-distance infrared scanning modules
This 150W 905nm TO56 2-pin laser diode adopts stacked tunnel junction technology and gold expansion packaging. It supports 1–100ns adjustable pulse width, achieves 180W maximum pulsed output with a 110μm*30μm compact light source size. Featuring low cost, full domestic production and high long-term reliability, it is widely used in laser ranging, laser sensing, LiDAR systems and miniature medical optical diagnostic equipment.
Data Sheet
Item No: TO905DL150
| Optical | Typical Value |
| Center Wavelength | 905nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 150W |
| Beam Size | 110*30um |
| Fast Axis Divergence FWHM | 25Degree |
| Slow Axis Divergence FWHM | 10Degree |
| Spectrum width FWHM | 7nm |
| Electrical | |
| Operating Current Iop | 35A |
| Threshold Current Ith | 1A |
| Operating Voltage Vop | 40V |
| Frequency | <10kHz |
| Pulse Width | <200ns |
| Duty Cycle | <0.2% |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~80℃ |
Drawing:
