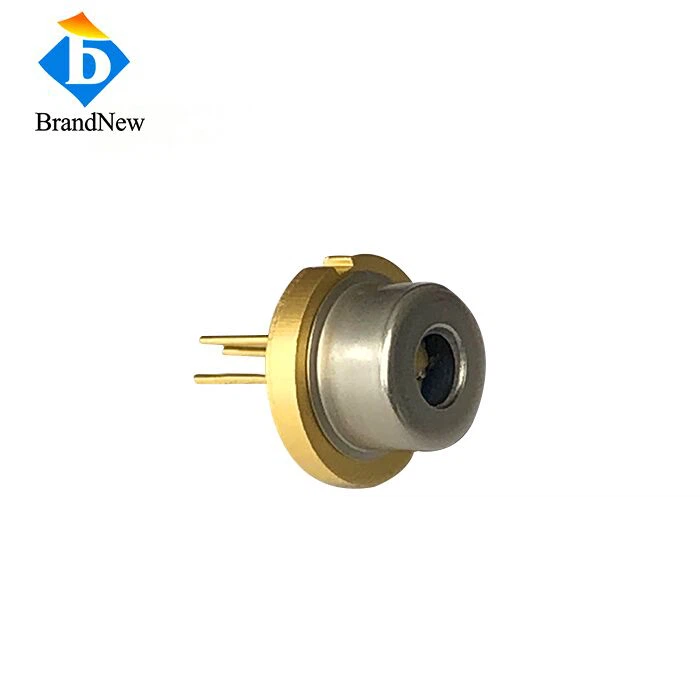

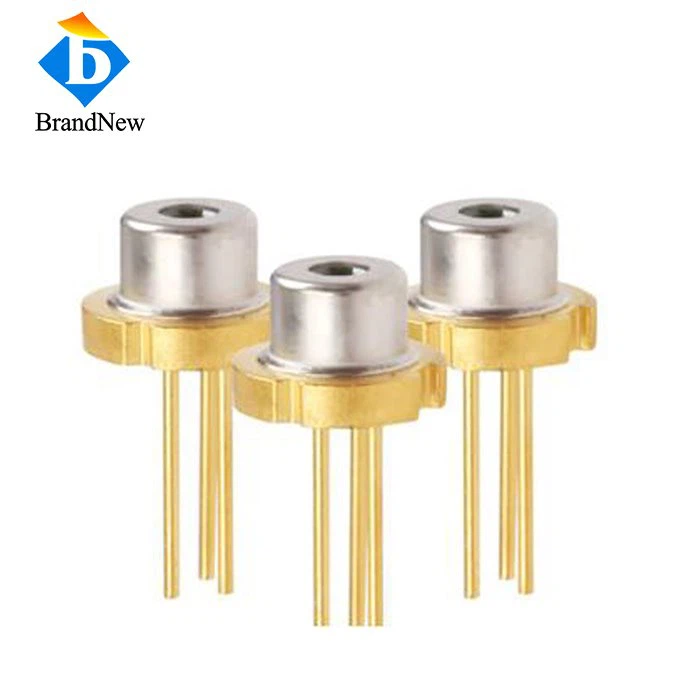

3W 1064nm TO-Mount Laser Diode
For applications in fibre laser technology, telecommunications and spectroscopy, 3W 1064nm TO-Mount Laser Diode supplied by Brandnew provide a brightness, quality and reliability.
These laser diodes are available with output powers of 3W from a single emitter chip and exhibit typical linewidths of 4 nm (FWHM). Single-mode chips are also available at wavelengths from 785 nm to 1064 nm.
Main Features:
Output power: 3W(CW)
Ausn hard solder assembly technology ,higher reliability
Standard C-Mount,CT-Mount,TO-3and
customer-designed package
Optimized OE conversion efficiency
Application:
Solid-state laser pumping
Fiber Laser Pumping
Infrared night vision light sources
Medical/Dental
Illumination
Data sheet:
Item No.: TO1064DL3
| Optical | Typical Value |
| Center Wavelength λ | 1064nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 3W |
| Electrical | |
| Operating Current Iop | 3A |
| Threshold Current Ith | 0.5A |
| Operating Voltage Vop | 2.2V |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | -40~80℃ |

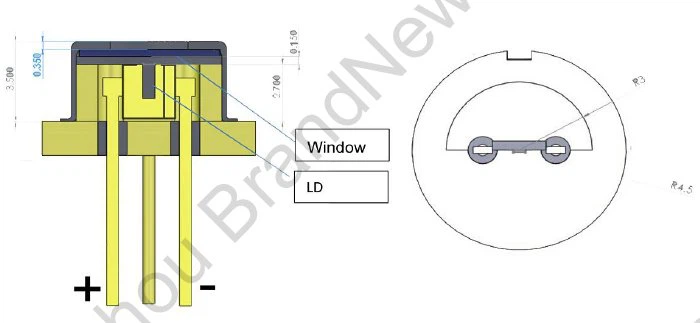

Drawing:
