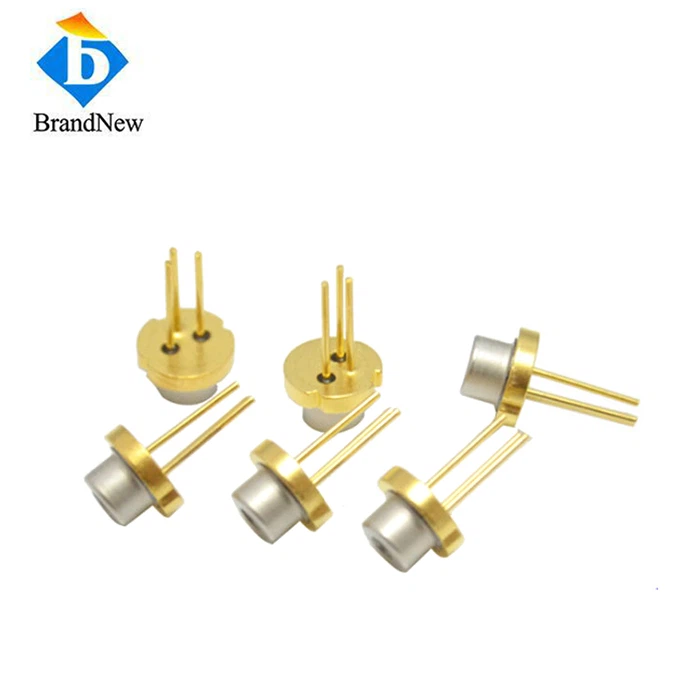

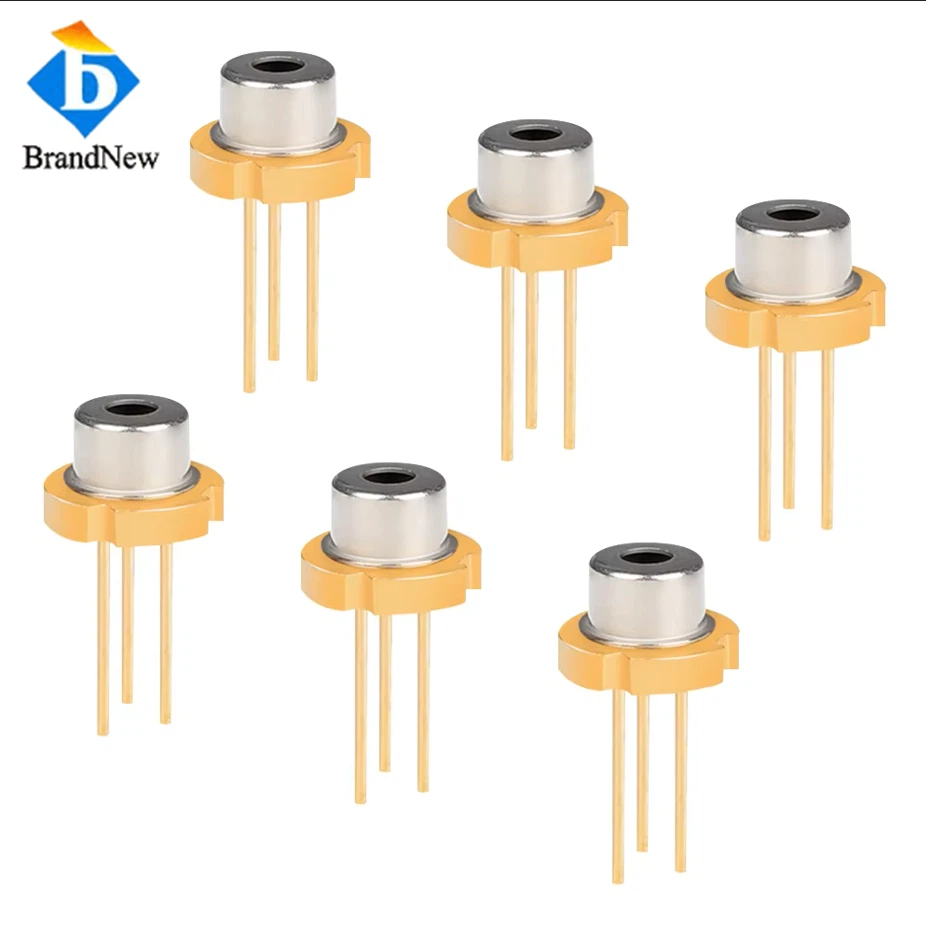

1W 905nm TO Laser Diode
Features:
Extremely high reliability
Range of single element and stacked devices
Flexibility in customization for different applications
Small emitting areas increases fiber coupled output
RoHS compliant
Applications:
Laser range finding
Laser safety curtains (laser scanning)
Infrared night illumination
Laser speed measurement (LIDAR)
Automotive adaptive cruise control (ACC)
Material excitation in medical and other analytical applications
Weapon simulation
Proximity Sensing
Data sheet:
Item No.: TO905DL900
|
Optical |
|
|
Central Wavelength |
905nm |
| Wavelength Tolerance | ±10nm |
|
Output Power |
0.9W |
| Spectrum Width |
7nm |
| Fast Axis Divergence | 38Degree |
| Slow Axis Divergence | 12Degree |
| Electrical | |
|
Operating Current Iop |
550mA |
|
Operating Voltage Vop |
2.0V |
|
Thermal |
|
|
Test Temperature |
25℃ |
| Storage Temperature | -40-80℃ |

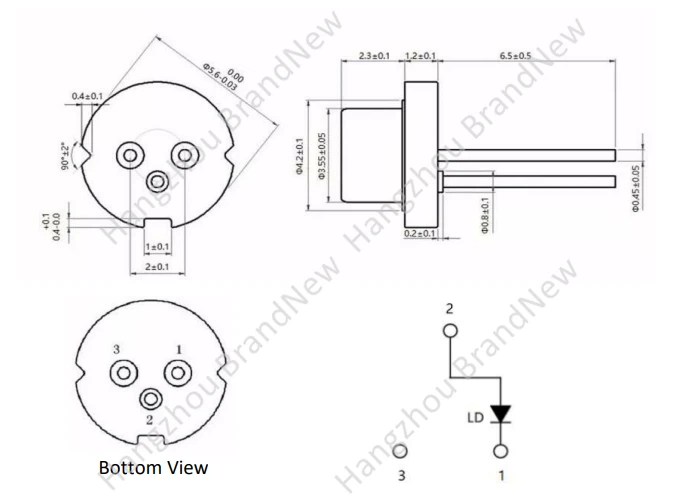

Drawing:
