Description

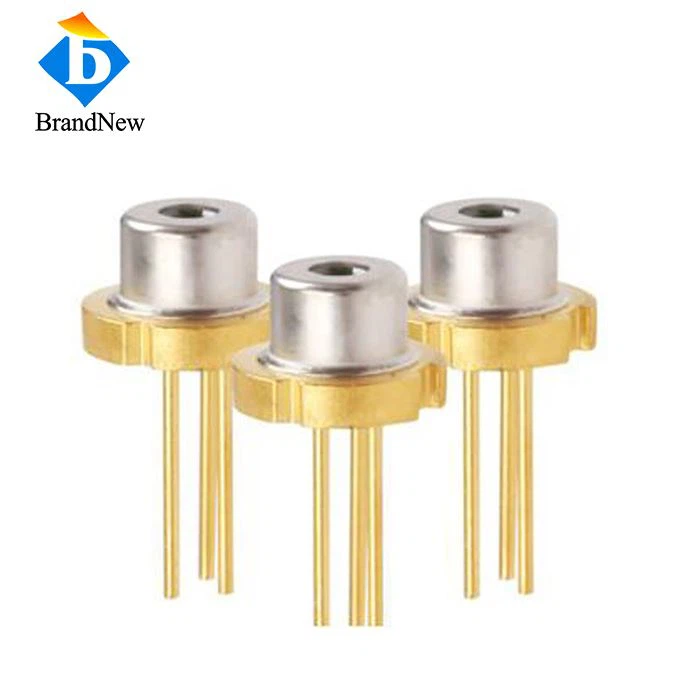

10W 850nm VCSEL TO Diode Laser
Features:
850nm wavelength and 10W output
Superior linewidth and stability
Standard TO package
Low threshold current
Higher reliability and life expectancy
Applications:
3D sensors
Lidars
IR illuminations
Medical applications
Proximity sensors
Temperature sensitivity of wavelength: The emission wavelength in 10W 850nm VCSEL TO Diode Laser is ~5 times less sensitive to temperature variations than in edge-emitters.
Beam Quality: 10W 850nm VCSEL TO Diode Laser emit a circular beam.
Spec sheet
| Optical | Typ. |
| Center Wavelength | 850nm |
| Wavelength Tolerance | ±10nm |
| Divergence | 23Degree |
| Output Power | 10W |
| Pulse Width | 6ns |
| Frequency | 10kHz |
| Duty Cycle | <0.1% |
| Electrical | |
| Threshold Current Ith | 0.02A |
| Operating Current Iop | 9.5A |
| Operating Voltage Vop | 23V |
|
Thermal |
|
| Test Temperature | 25℃ |
| Storage Temperature | -40-80℃ |
| Wavelength Temperature Coefficient | 0.1nm/℃ |
Size Drawing
