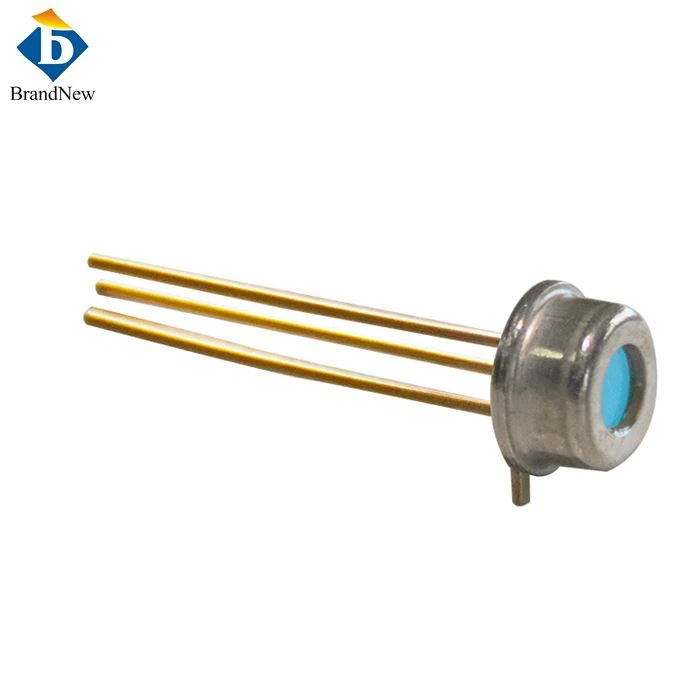

6G 850nm VCSEL TO46 for Data Transmission
The 6G 850nm VCSEL for Data Transmission is a high-performance 850 nm VCSEL (Vertical Cavity Surface-Emitting Laser) packaged for high-speed data communications.The 6G 850nm VCSEL for Data Transmission is a high radiance VCSEL designed to convert electrical current into optical power that can be used in fiber optic communications and other applications. As the current varies above threshold, the light intensity increases proportionally.
Features
Bit data rate more than 6Gbps
Multimode VCSEL
Low wavelength drift
Oxide isolation technology
Low threshold current
High reliability
Applications
6Gbps data transmission
Optical USB
Active Optical Cable (AOC)
HDMI
Sensing applications
Specifications:
Item NO.: TO850VC6G
|
Parameters |
Typ. |
|
Pulse Optical Power |
2.7mW |
|
Threshold Current |
0.4A |
|
Slope Efficiency |
0.58mW/mA |
| Peak Wavelength |
850nm |
|
Forward Voltage |
2.1V |
|
Beam Angle |
30Degrees |
|
Wavelength Shift |
0.07nm/℃ |
| Operating Temperature | -20-85℃ |
| Storage Temperature | -40-105℃ |
Size Drawing:
