Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 700w 755 808 1064 laser diode stack. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

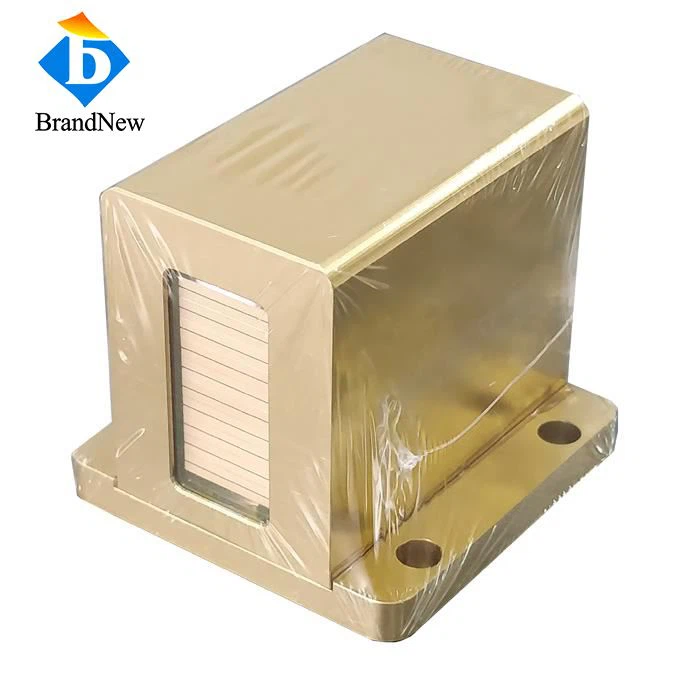

700W 755 808 1064 Laser Diode Stack
Key features:
100W output power per bar, 50W or 60W available
Number of bars: 7, can be customized
3 Mix wavelengths: 755nm+808nm+1064nm, work in the different depth of hair follicle to achieve better efficacy.
Application: Specal design for diode laser hair removal beauty machine
Quality warranty is 18 months.
Number of shots: No limitation within 18 months.
![KNUTMK0M~O]CPJRS%1BX[}9](/Content/uploads/202098745/20200331143553c0a1d5bc3aec439ba222860fe5013125.jpg)
Data sheet
Item No.:WC808VS700
Optical | |
Center Wavelength | 760/808/1064nm |
Wavelength Tolerance | ±10nm |
Working Mode | QCW |
Output Power | 700W |
Number of Bars | 7 |
Fast Axis Divergence(FWHM) | 38Deg |
Slow Axis Divergence (FWHM) | 12Deg |
Pulse Width | ≤400ms |
Duty Cycle | ≤40% |
Electrical | |
Operating Current Iop | ~100A |
Threshold Current Ith | ~10A |
Operating Voltage Vop | ~13V |
Power Conversion Efficiency | ~50% |
Thermal | |
Operating Temperature | 20~30℃ |
Storage Temperature | 0-55℃ |
Package Drawing
