Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced new 500w 808nm macro channel qcw vertical stack diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

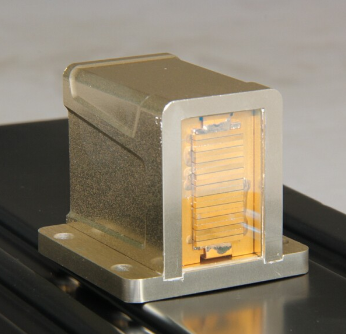

New 500W 808nm Macro Channel QCW Vertical Stack Diode Laser
Advantages:
- Optimized OE Conversion Efficiency
- Stardard Configuration
- Customer-design Package
Application:
- solid-state laser pumping
- hair removal
- welding
- Brandnew Technology is a China diode laser manufacturer and supplier with a professional factory that produces high quality products and sells them at competitive prices
- The new 500W 808nm Macro Channel QCW Vertical Stacking Diode Laser features optimized OE conversion efficiency and standard configurations
- Custom designed packages are used and can be customized
- Applications range from solid-state laser pumping to hair removal and welding
Specifications
Item No.: WC808VS600
Item Name: 600W 808nm Water Cooled Vertical Stack Diode Laser
| Optical | |
| Center Wavelength | 808±10nm |
| Output Power | 500W |
| Spectral Width FWHM | ≤5nm |
| Number of Bar | 5 |
| Polarization Mode | TE |
| FAST/SLOW Axis Divergence | 38/12Deg |
| Slope Efficiency | ≥1.0W/A |
| Electrical | |
| Operating Current Lop | 60A |
| Threshold Current Lth | 12A |
| Operating Voltage Vop | 19V |
| Power Conversion Efficiency | 45% |
| Thermal | |
| Operating Temp. | 25℃ |
| Storage Temperature | 0-55℃ |
| Coolant |
Fitered Water |
| Flow Rate/bar | 3.5-5.5L/min |
| Max Inlet Pressure | 400kPa |
