8W 793nm Fiber Optic Diode Laser For Range Finding
Features:
- 793nm near-infrared wavelength with 8W CW output
- 200μm fiber core paired with 0.22NA
- SMA905 connector for stable, plug-and-play connection
Applications:
- Laser Pumping Systems: Core pump source for ytterbium-doped fiber lasers and solid-state lasers
- Medical & Aesthetic Equipment: Applied in infrared therapy devices and dermatological treatment systems
- Industrial Material Processing: Used for thin-film annealing, semiconductor wafer scribing
The 8W 793nm near-infrared laser diode module combines high-power output, 200μm/0.22NA fiber configuration, and SMA905 connector design. Its stable beam performance and easy-to-integrate structure make it a reliable solution for laser pumping, medical equipment, industrial processing, and scientific research applications that demand consistent mid-power infrared laser sources.
Data Sheet
Item No: FC793DL8
| Optical | |
| Center Wavelength | 793nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 8W |
| FWHM | <7nm |
| Fiber | |
| Fiber Core | 200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | <12A |
| Threshold Current Ith | 1.5A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |

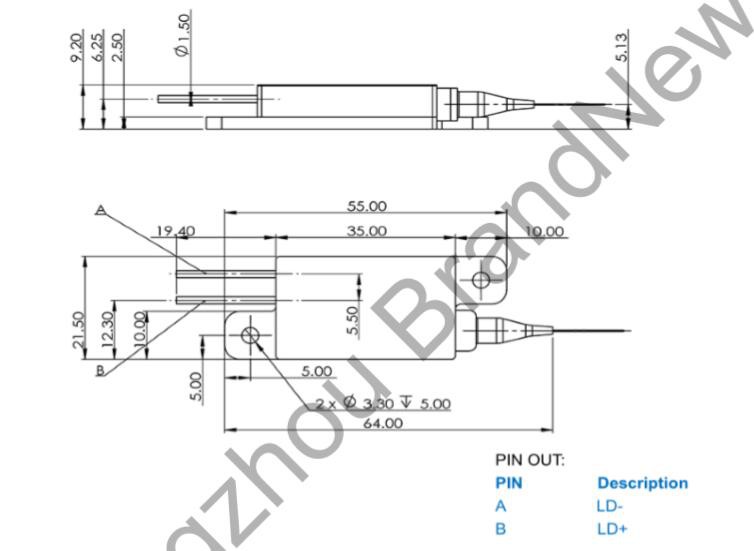

Drawing:
