Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced distributed feedback laser 2327nm 2mw dfb fiber coupled diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

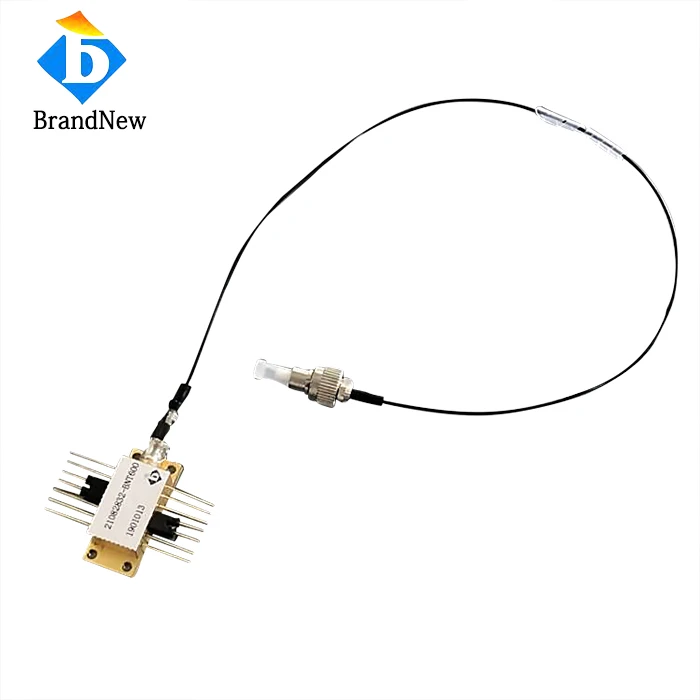

dFB Distributed Feedback Laser 2327nm 2mW Fiber Coupled Diode Laser
Key features:
- Wavelength 2327nm
- Wavelength Tolerance：±1nm
- Output Power：2mW
- Side-mode Suppression Ratio：35dB
application:
- CO gas detection
- Meteorological monitoring
- Environmental testing
- Gas detection
Specification
Item NO.: FC2327DFB2
Item Name: 2327nm 2mW Fiber Coupled Diode Laser
| Optical | Typical Value |
| Center Wavelength | 2327nm |
| Wavelength Tolerance | ±1nm |
| Output Power | 2mW |
| Side-mode Suppression Ratio | 35dB |
| Fiber | |
| Fiber Core | Single Mode |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | ＞1m |
| fiber Connector | FC/APC |
| Electrical | |
| Operating Current Lop | 100mA |
| Threshold Current Lth |
300mA |
| Operating Voltage Vop | 3V |
| TEC | ＜2A/4V |
| Thermal | |
| Operating Case Temperature | -20~55℃ |
| Storage Temperature | -40~85℃ |
Size:
The DFB laser (Distributed Feedback Laser) is a semiconductor laser developed based on the FP (Fabry-Pérot) laser. Its main feature is the formation of a mode-selective structure by integrating a Bragg grating (FBG) in the active layer, thus realizing a single-mode output with high stability and narrow linewidth. DFB lasers are usually used in application scenarios that require high stability and long distance transmission, such as fiber optic communication, gas detection, optical metrology and other fields. It is able to maintain a stable output wavelength under different operating conditions, thanks to the design of its internal Bragg grating, which enables DFB lasers to maintain a stable wavelength output even when the temperature changes.
The manufacturing process of DFB lasers includes various types, such as secondary epitaxial distributed feedback (RG-DFB) and surface grating distributed feedback (SG-DFB), and these different structural methods enable DFB lasers to perform well in different applications. In addition, DFB lasers can adjust the output wavelength by current and temperature control, thus adapting to different application requirements.
